Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Theft Deterrent (CTDS Power And Ground)

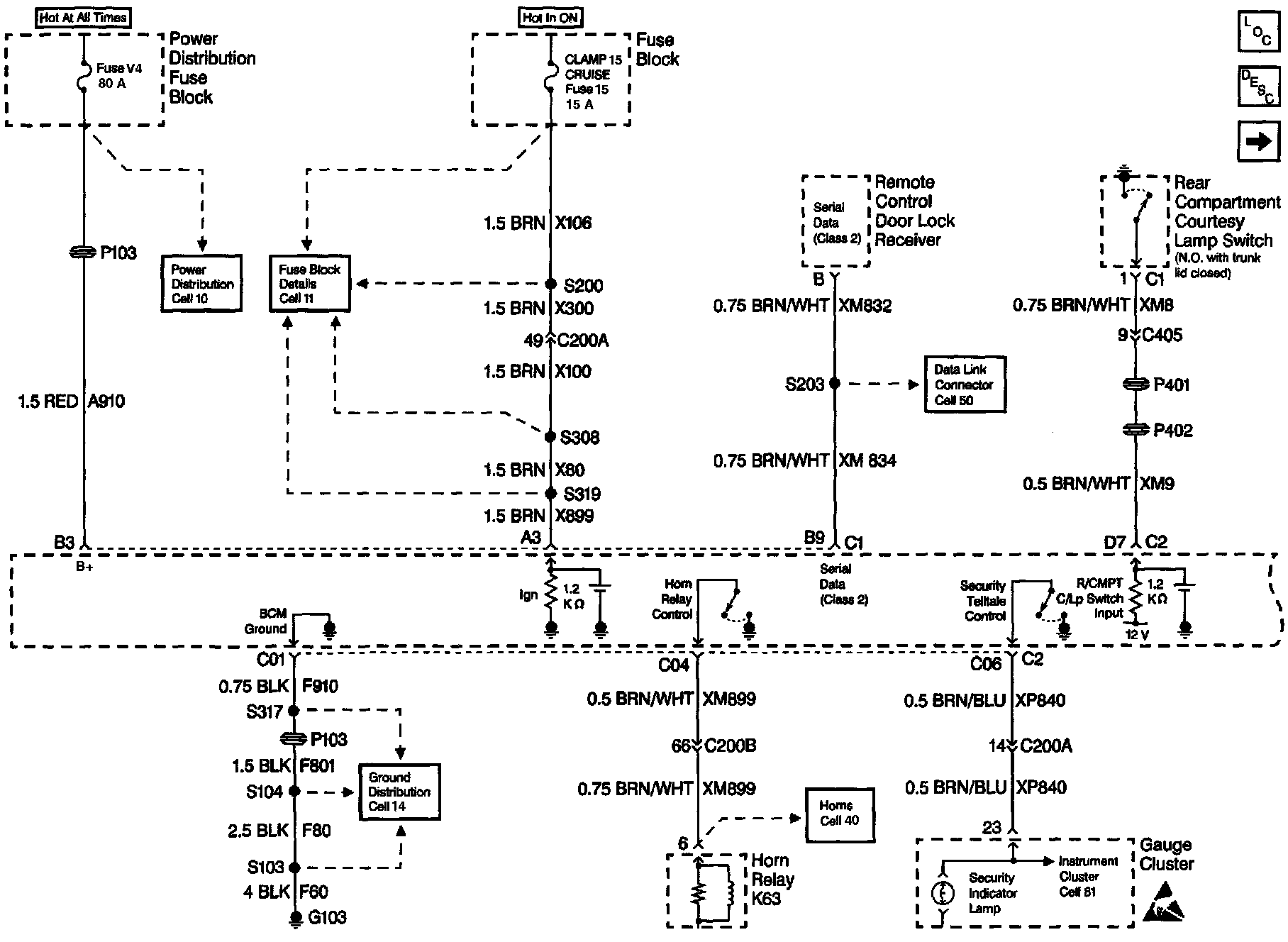

Theft Deterrent (CTDS Power And Ground)

Theft Deterrent System Schematics: Theft Deterrent (CTDS Power And Ground):
