Frame Extension Replacement - Rear

REMOVAL PROCEDURE

Frame Extension Replacement - Rear: Removal Procedure:

1. Raise and support the vehicle.
2. Remove the rear fascia.

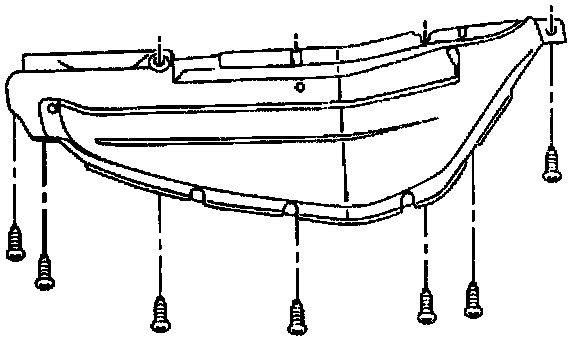

3. Remove the bolts from the rear frame support.
4. Remove the rear frame support.

INSTALLATION PROCEDURE

Frame Extension Replacement - Rear: Installation Procedure:

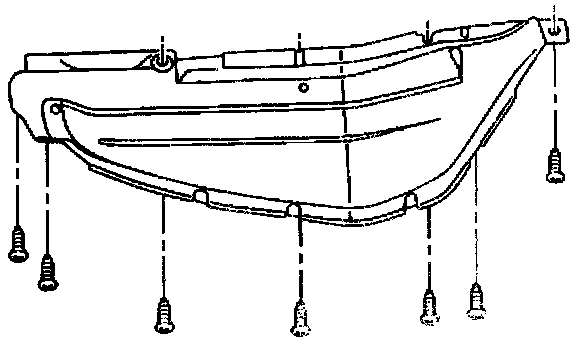

1. Install the rear frame support.
2. Install the bolts to the rear frame support.

Tighten
Tighten the rear frame bolts to 10 N.m (89 lb in).

3. Install the rear fascia.
4. Lower the vehicle.
