Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Power Seats >> Power Seat INOP In One Direction >> Driver Front Height Motor INOP

Driver Front Height Motor INOP

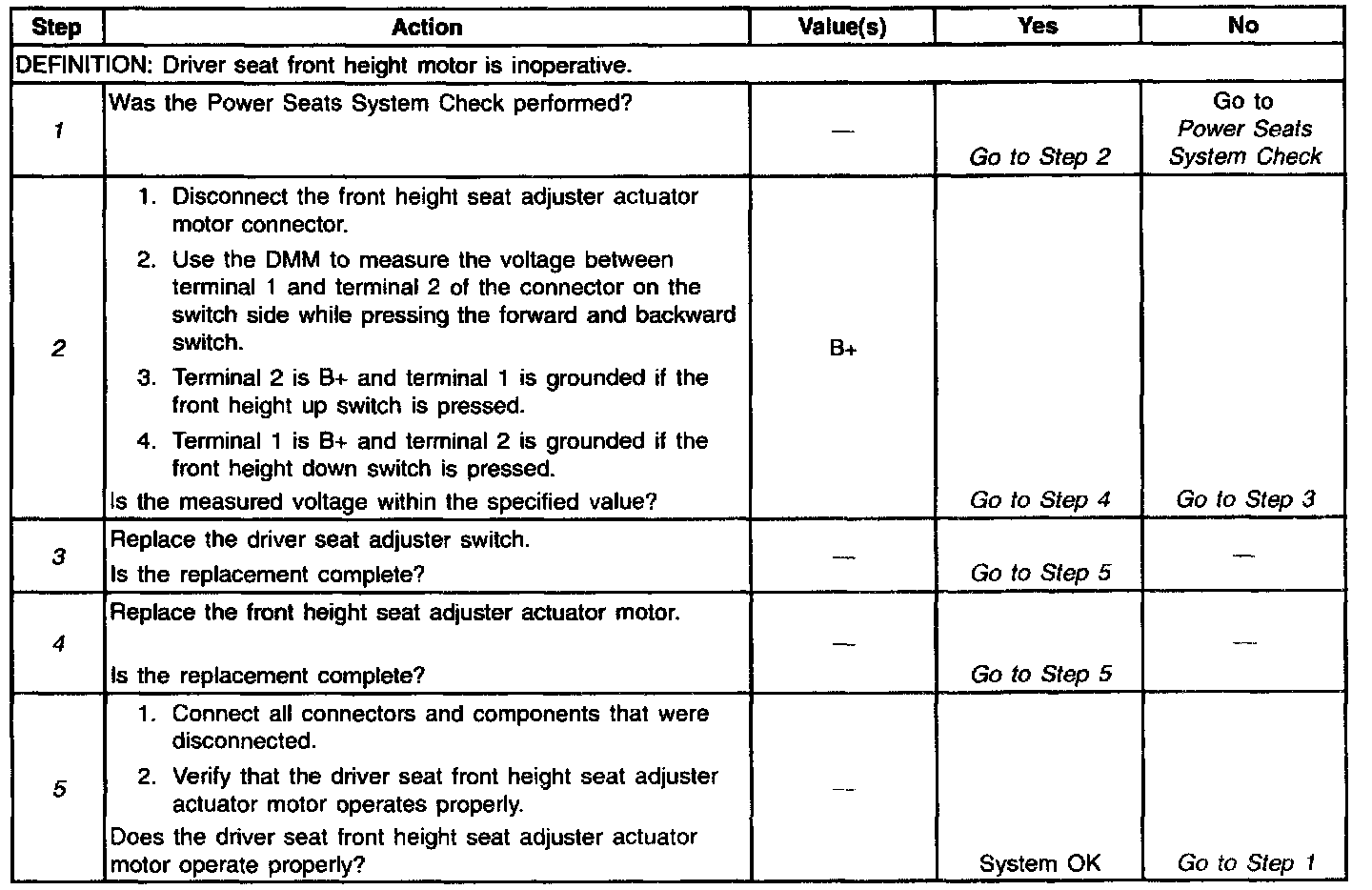

Power Seat INOP In One Direction (Driver Front Height Motor INOP):
