Passenger Side Front
REMOVAL PROCEDURESeat Replacement (Passenger Side Front): Removal Procedure:
1. Disable the SIR system if equipped with inflatable restraint front seat module.
2. Remove the inflatable restraint front seat module wiring connector if equipped.
3. Position the seat in the full forward position.

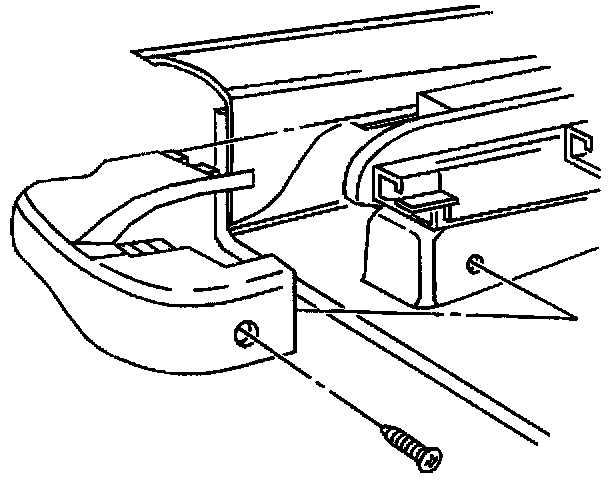

4. Remove the front seat track rear trim cover screw.
5. Remove the front seat track trim cover by sliding off.
Seat Replacement (Passenger Side Front): Removal Procedure:

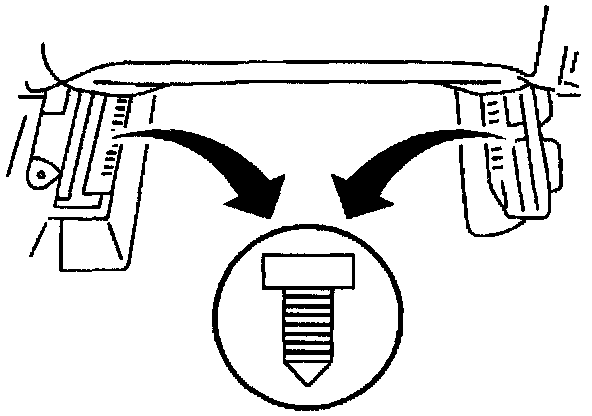

6. Remove the front seat rear anchoring bolts.
7. Position the seat in the full rearward position.
Seat Replacement (Passenger Side Front): Removal Procedure:

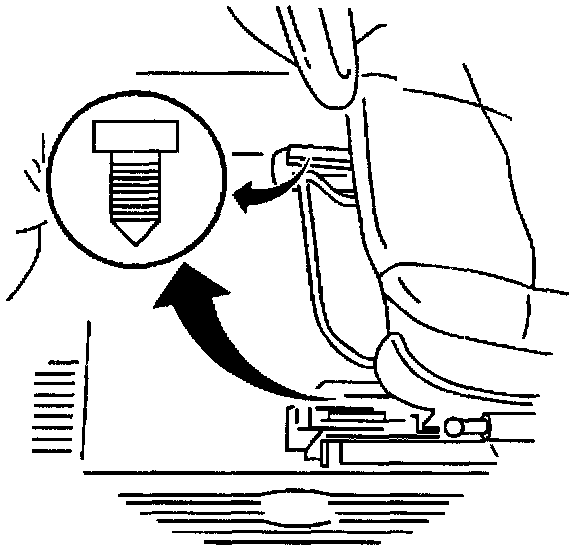

8. Remove the front seat anchoring bolts.
9. Position the front seat to the center and upright position.
This will allow the bolts from the seat track to the seat frame to be removed.
10. Remove the seat from vehicle.
INSTALLATION PROCEDURE
Seat Replacement (Passenger Side Front): Installation Procedure:
1. Install the seat to vehicle.
2. Position the seat to the center and upright position.
3. Install the front seat anchoring bolts.
Tighten
Tighten the front seat anchoring bolts to 25 N.m (19 lb ft).
4. Position the seat in the full forward position.
Seat Replacement (Passenger Side Front): Installation Procedure:

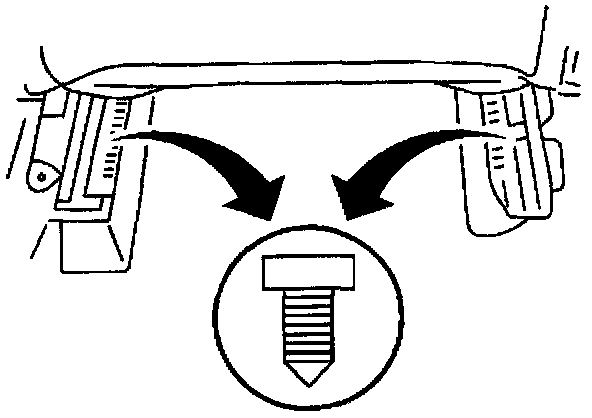

5. Install the front seat rear anchoring bolts.
Tighten
Tighten the front seat anchoring bolts to 25 N.m (19 lb ft).
6. Install the front seat track trim cover by sliding on.
Seat Replacement (Passenger Side Front): Installation Procedure:
7. Install the front seat tract rear trim cover screw.
Tighten
Tighten the front seat track rear trim cover screw until fully seated and not stripped.
8. Return the seat to its original position.
9. Install the inflatable restraint front seatback module wiring connector if equipped.
10. Enable SIR system if equipped with inflatable restraint front seat module.
