Seat Back Replacement: Rear
REMOVAL PROCEDURESeat Back Replacement (Rear): Removal Procedure:
1. Fold down rear seatback cushion.

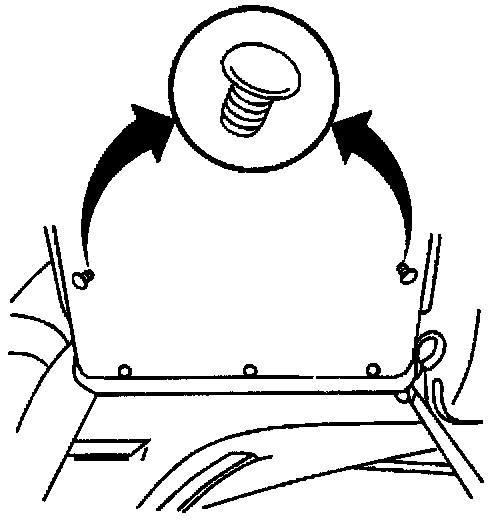

2. Remove the rear seatback cushion retaining clips.
Seat Back Replacement (Rear): Removal Procedure:

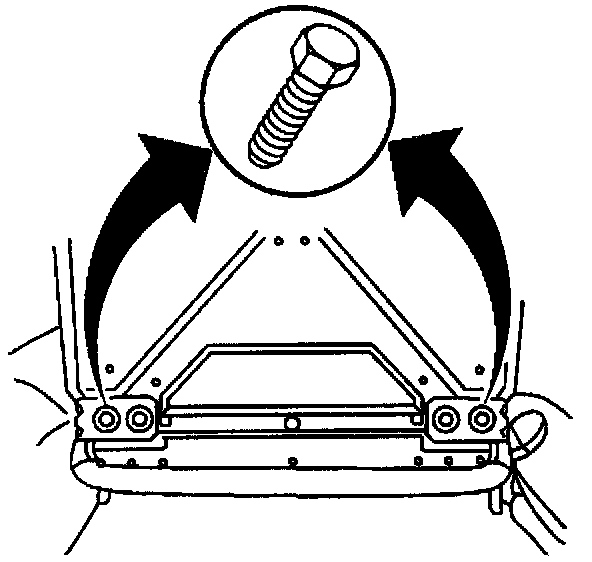

3. Remove the rear seatback hinge bolts.
4. Disconnect rear seatback heating element wiring connection.
5. Remove the rear seatback from vehicle.
INSTALLATION PROCEDURE
Seat Back Replacement (Rear): Installation Procedure:
1. Install the rear seatback to vehicle.
2. Install the rear seatback hinge bolts.
Tighten
Tighten the rear setback hinge bolts to 20 N.m (15 lb ft).
Seat Back Replacement (Rear): Installation Procedure:
3. Connect rear seatback heating element wiring connection.
4. Install the rear seatback cushion retaining clips.
5. Install the rear seatback to original position.
