Seat Back Release Latch Replacement: Rear

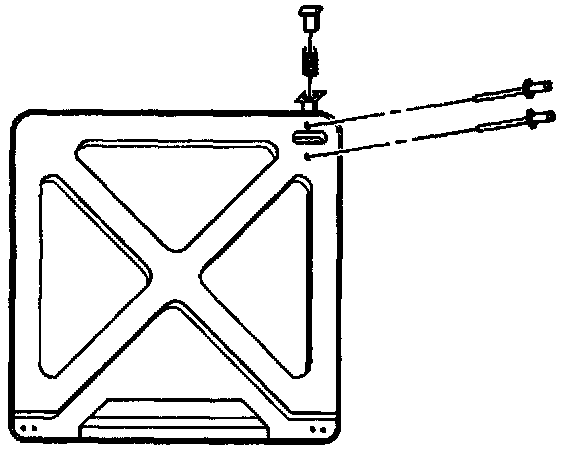

REMOVAL PROCEDURESeat Back Release Latch Replacement (Rear): Removal Procedure:
1. Remove the rear seat cushion.
2. Remove the rear seatback cushion.
3. Remove the rivets by drilling out.
4. Remove the rear seatback release latch.

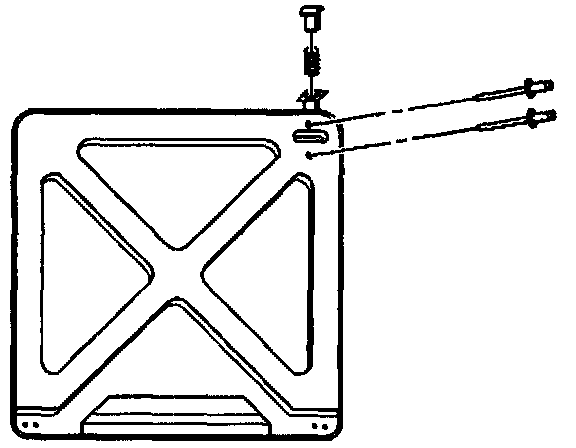

INSTALLATION PROCEDURE
Seat Back Release Latch Replacement (Rear): Installation Procedure:
1. Install the rear seatback release latch.
2. Install the rivets to rear seatback release latch.
3. Install rear seatback cushion.
4. Install the rear seat cushion.
