Seat Back Release Cable Replacement: Front

REMOVAL PROCEDURE

Seat Back Release Cable Replacement (Front): Removal Procedure:

1. Remove the front seat.
2. Remove the front seatback cushion cover.
3. Unhook lateral release cable from lateral release lever.

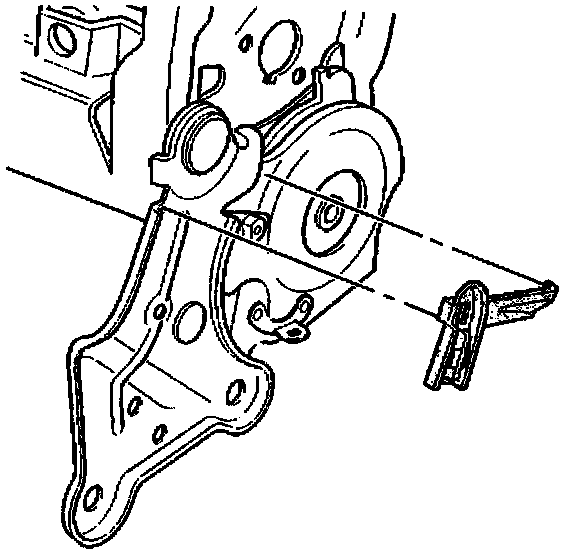

4. Remove lateral release lever from recliner mechanism.
5. Unroute lateral release cable form seatback frame.

INSTALLATION PROCEDURE

Seat Back Release Cable Replacement (Front): Installation Procedure:

1. Route lateral release cable to seat back frame.
2. Install lateral release lever to recliner mechanism.
3. Install lateral release cable to lateral release lever.
4. Install front seatback cushion cover.
5. Install front seat. Refer to Front Seat in this section.
