Seat Back Panel Replacement: Front

REMOVAL PROCEDURE

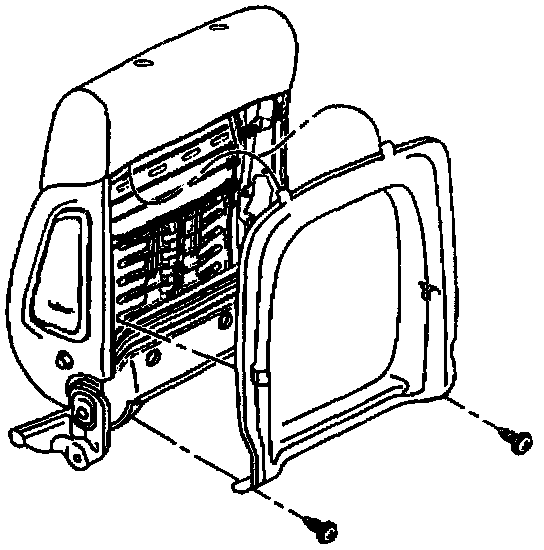

Seat Back Panel Replacement (Front): Removal Procedure:

1. Move the front seat to the full forward position.
2. Remove the seatback panel screws.
3. Remove the seatback panel from the seatback.

INSTALLATION PROCEDURE

Seat Back Panel Replacement (Front): Installation Procedure:

1. Install the seatback panel to the seatback.
2. Install the seatback panel screws.

Tighten
Tighten the front seatback panel screws until fully seated and not stripped.

3. Install the front seat to original position.
