Seat Back Liner Replacement: Front Inner

REMOVAL PROCEDURE

Seat Back Liner Replacement (Front Inner): Removal Procedure:




1. Remove the front seat.
2. Remove the front seatback panel.

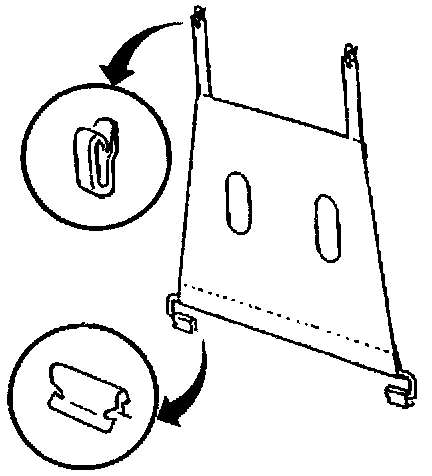

3. Remove the front seatback inner liner. The front seatback inner liner unhooks from upper and lower corners. Use a small thin-bladed tool to assist with releasing of lower hooks.

INSTALLATION PROCEDURE

Seat Back Liner Replacement (Front Inner): Installation Procedure:




1. Install the front seatback inner liner. Install the front seatback inner liner hooks to upper and lower corners. Use a small thin-bladed tool to assist with engaging of lower hooks.
2. Install the front seatback panel.
3. Install the front seat.
