Seat Back Hinge Replacement: Rear Outer

REMOVAL PROCEDURE

Seat Back Hinge Replacement (Rear Outer): Removal Procedure:

1. Remove the rear seat cushion.
2. Remove the rear seatback cushion.

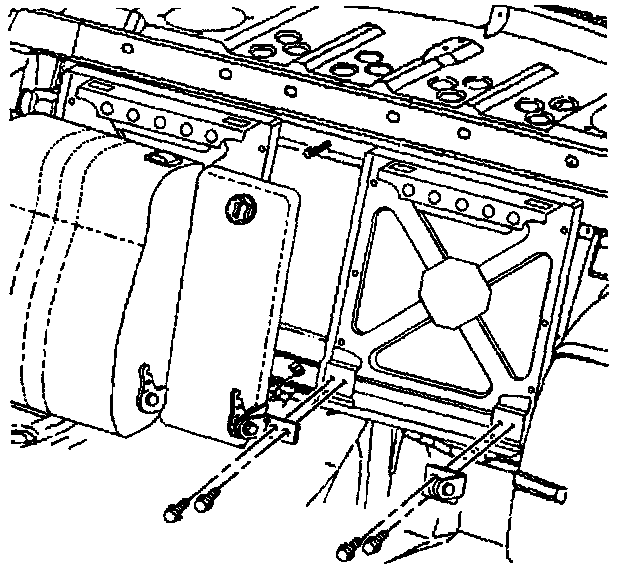

3. Remove the seatback hinge bolts.
4. Remove the rear seatback outer hinge.

INSTALLATION PROCEDURE

Seat Back Hinge Replacement (Rear Outer): Installation Procedure:

1. Install the rear seatback outer hinge.
2. Install the seatback outer hinge bolts.

Tighten
Tighten the rear seatback outer hinge bolts to 20 N.m (15 lb ft).

3. Install the rear seatback cushion.
4. Install the rear seat cushion.
