Seat Back Hinge Replacement: Rear Inner
REMOVAL PROCEDURESeat Back Hinge Replacement (Rear Inner): Removal Procedure:
1. Remove the rear seat cushion.

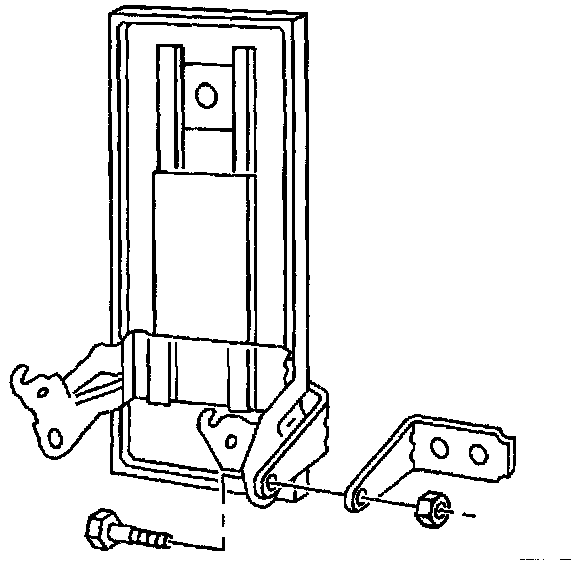

2. Remove the rear seatback cushion.
3. Remove the rear seatback center armrest.
4. Remove the rear seatback inner hinge bolt and nut from armrest support.
5. Remove the rear seatback inner hinge.
INSTALLATION PROCEDURE
Seat Back Hinge Replacement (Rear Inner): Installation Procedure:

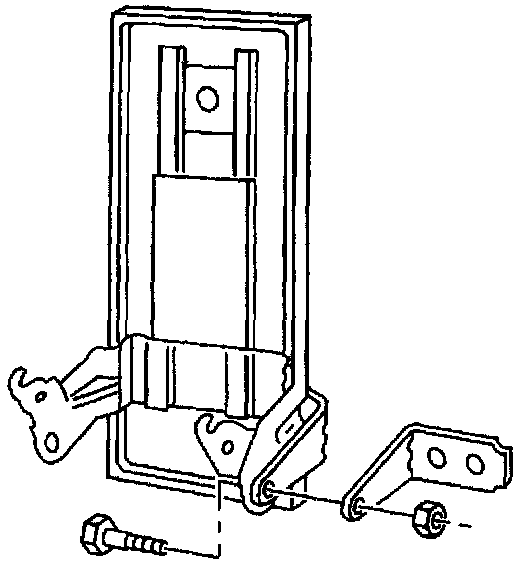

1. Install the rear seatback inner hinge.
2. Install the rear seatback hinge bolt and nut to armrest support.
Tighten
Tighten the rear seatback inner hinge bolt and nut to 20 N.m (15 lb ft).
3. Install the rear seatback center armrest.
4. Install the rear seatback cushion.
5. Install the rear seat cushion.
