Seat Back Frame Replacement - Front

REMOVAL PROCEDURE

Seat Back Frame Replacement (Front): Removal Procedure:

1. Remove the front seat.
2. Remove the front seatback cushion foam.
The front seatback cushion and cover can be removed as an assembly when replacing front seatback cushion frame.
3. Remove the lumbar adjuster plate.
4. Remove the front seatback power recliner actuator motor and adjuster.
5. Remove the lateral release cable if equipped.

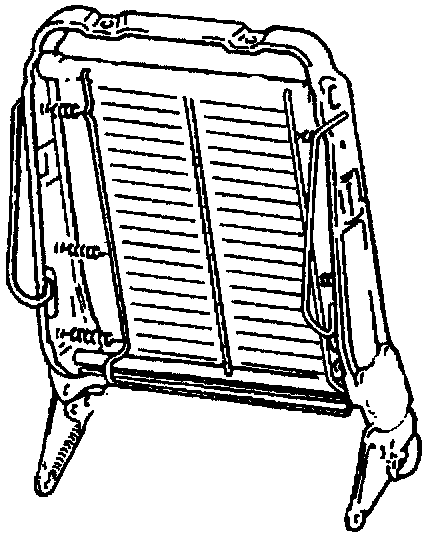

6. Remove the front seatback frame.

INSTALLATION PROCEDURE

Seat Back Frame Replacement (Front): Installation Procedure:

1. Install the front seatback frame.
2. Install the lateral release cable if equipped.
3. Install the front seatback power recliner actuator motor and adjuster.
4. Install the lumbar adjuster plate.
5. Install the front seatback cushion foam.
Install the front seat.
