Seat Back Cover Replacement: Rear
REMOVAL PROCEDURESeat Back Cover Replacement (Rear): Removal Procedure:
1. Remove the front seat.
2. Remove the front seatback.
3. Remove the headrest restraint.
4. Remove the lateral release knob and bezel if equipped.
5. Remove the lumbar support actuator knob.
6. Remove the front seatback panel.
7. Remove the inflatable restraint front seat module if equipped.
8. Remove the front seatback inner liner.
9. Remove the front seatback headrest restraint release tab retainers using a flat-bladed tool, being careful not damage cover.

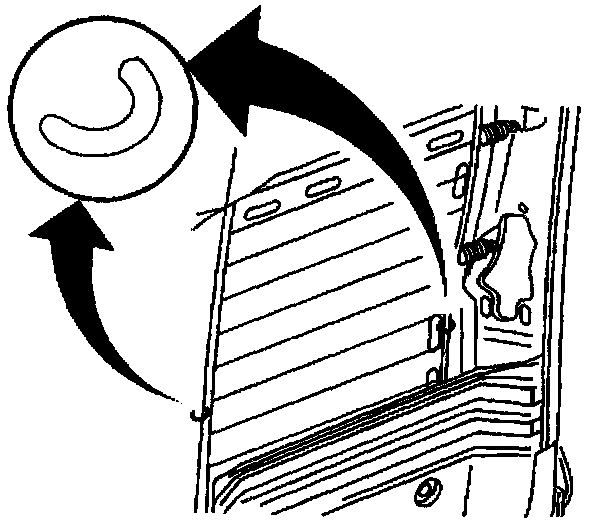

10. Remove the front seatback retaining rings.
Seat Back Cover Replacement (Rear): Removal Procedure:

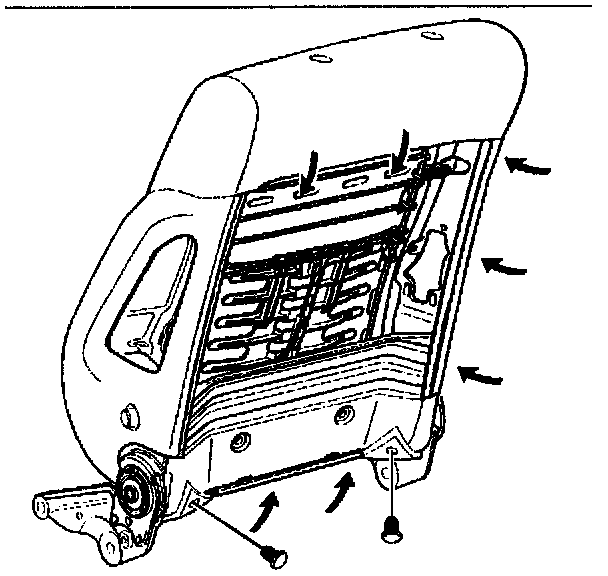

11. Remove the front seatback cushion cover.
12. Remove heated seat pad wiring through seat cushion pad.
INSTALLATION PROCEDURE
Seat Back Cover Replacement (Rear): Installation Procedure:
1. Install heated seat pad wiring through seat cushion pad.

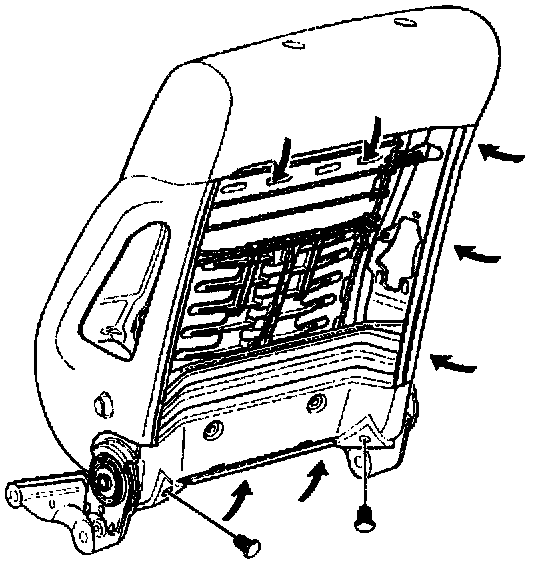

2. Install the front seatback cushion cover.
Seat Back Cover Replacement (Rear): Installation Procedure:

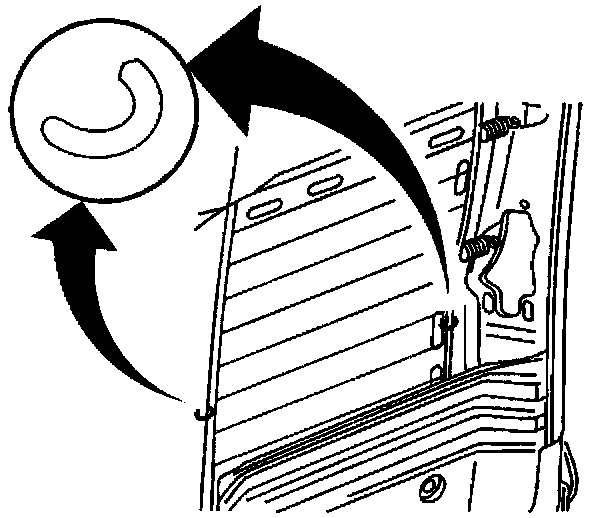

3. Install the front seatback retaining rings.
4. Install new front seatback headrest restraint release tab retainers.
5. Install the front seatback inner liner.
6. Install the inflatable restraint front seat module if equipped.
7. Install the front seatback panel.
8. Install lumbar support actuator knob.
Grasp knob and push inward to secure.
9. Install lateral release knob and bezel if equipped.
10. Install the front seatback.
11. Install a headrest restraint.
12. Install the front seat.
