Pass Through Access Door Replacement

REMOVAL PROCEDURE

Pass Through Access Door Replacement: Removal Procedure:

1. Remove the rear seat cushion.
2. Remove the rear seatback cushion.
Both rear seatback cushions will have to be removed from vehicle to prevent damage.
3. Remove the rear seatback inner hinges.

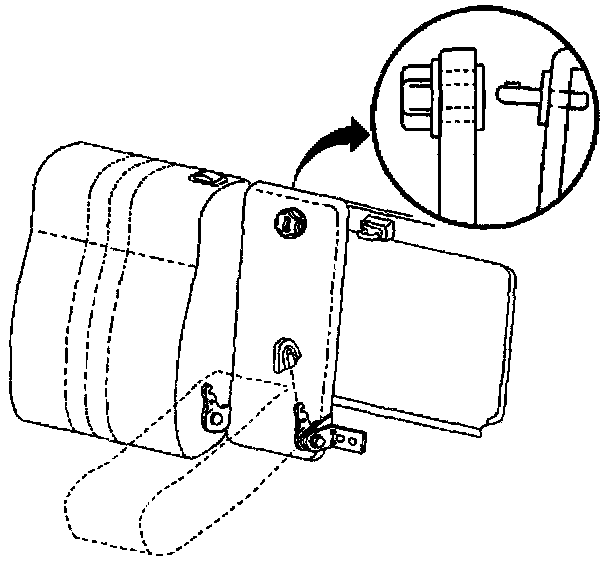

4. Remove the rear compartment access door from vehicle.
Transfer the cover and the knob.

INSTALLATION PROCEDURE

Pass Through Access Door Replacement: Installation Procedure:

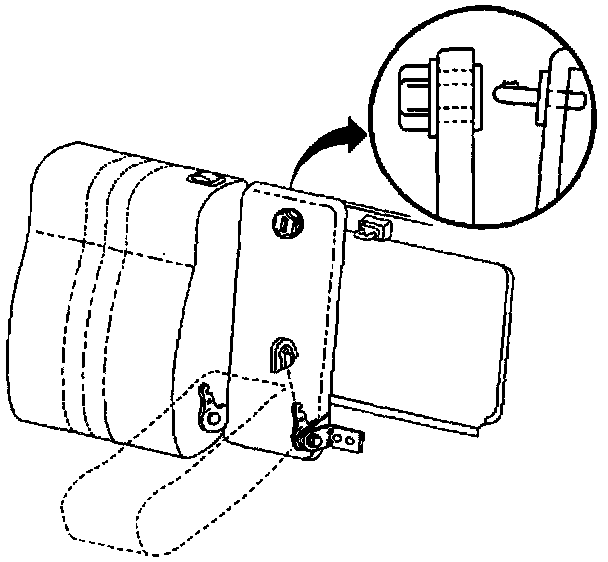

1. Install the rear compartment access door to vehicle.
2. Install the rear seatback inner hinges.
3. Install the rear seatback cushion.
Install both rear seatback cushions to the vehicle.
4. Install the rear seat cushion.
