Anti-Submarining Switch Replacement
REMOVAL PROCEDUREAnti-Submarining Switch Replacement: Removal Procedure:
1. Remove the front seat.
2. Remove the front seat cushion outer finish panel.
3. Remove the seat memory module electrical connectors.
4. Remove the anti-submarining switch electrical connector.
5. Remove the seat adjuster.

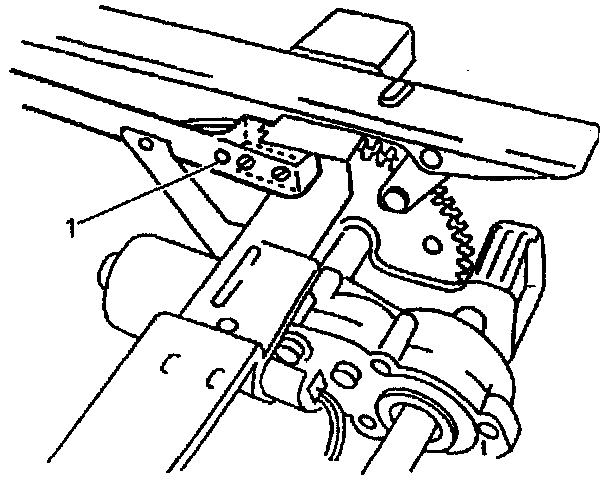

6. Remove the anti-submarining switch (1). Unhook anti-submarining switch from three places on the inner seat adjuster. Two at the top of the seat adjuster and one at the bottom.
INSTALLATION PROCEDURE
Anti-Submarining Switch Replacement: Installation Procedure:
1. Install the anti-submarining switch (1).
IMPORTANT: The anti-submarining switch must be attached at all three places on the seat adjuster or the seat may be allowed to tilt too far forward during a collision, allowing the occupant to slide under the air bag.
2. Hook anti-submarining switch to three places on the inner seat adjuster. Two at the top of the seat adjuster and one at the bottom,
3. Install the seat adjuster.
4. Install the anti-submarining switch electrical connector.
5. Install the seat memory module electrical connectors.
6. Install the front seat cushion outer finish panel.
7. Install the front seat.
8. With the seat in the vehicle. Check that the anti-submarining switch arms move up and down with the seat adjusted.
