Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Power Seats >> Driver Seat Adjuster Switch and Actuator Motors Without Memory

Driver Seat Adjuster Switch and Actuator Motors Without Memory

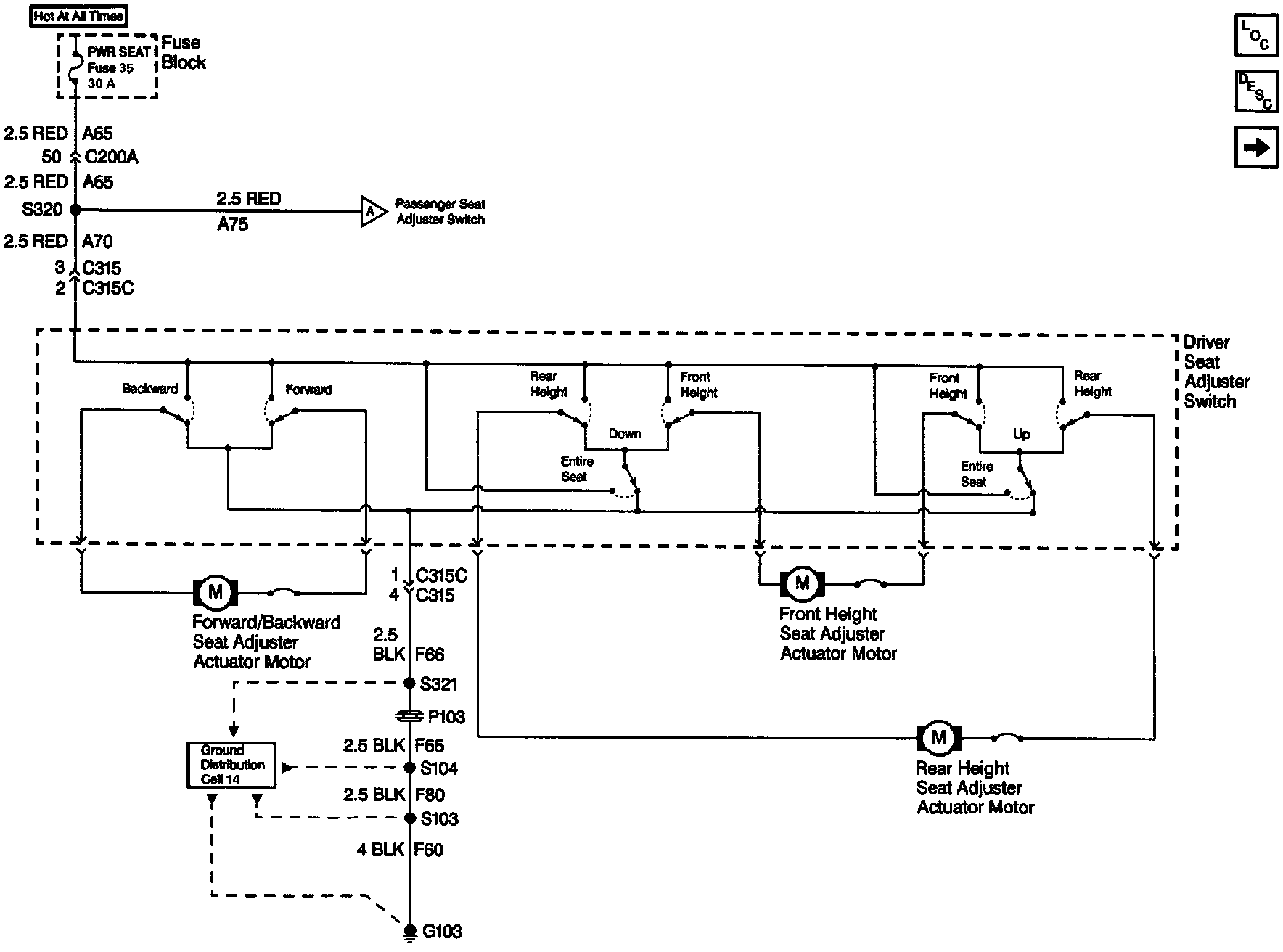

Power Seats Schematics: Driver Seat Adjuster Switch And Actuator Motors Without Memory:
