Driver Seat Adjuster Switch and Actuator Motors With Memory
Driver Seat Adjuster Switch and Actuator Motors With Memory

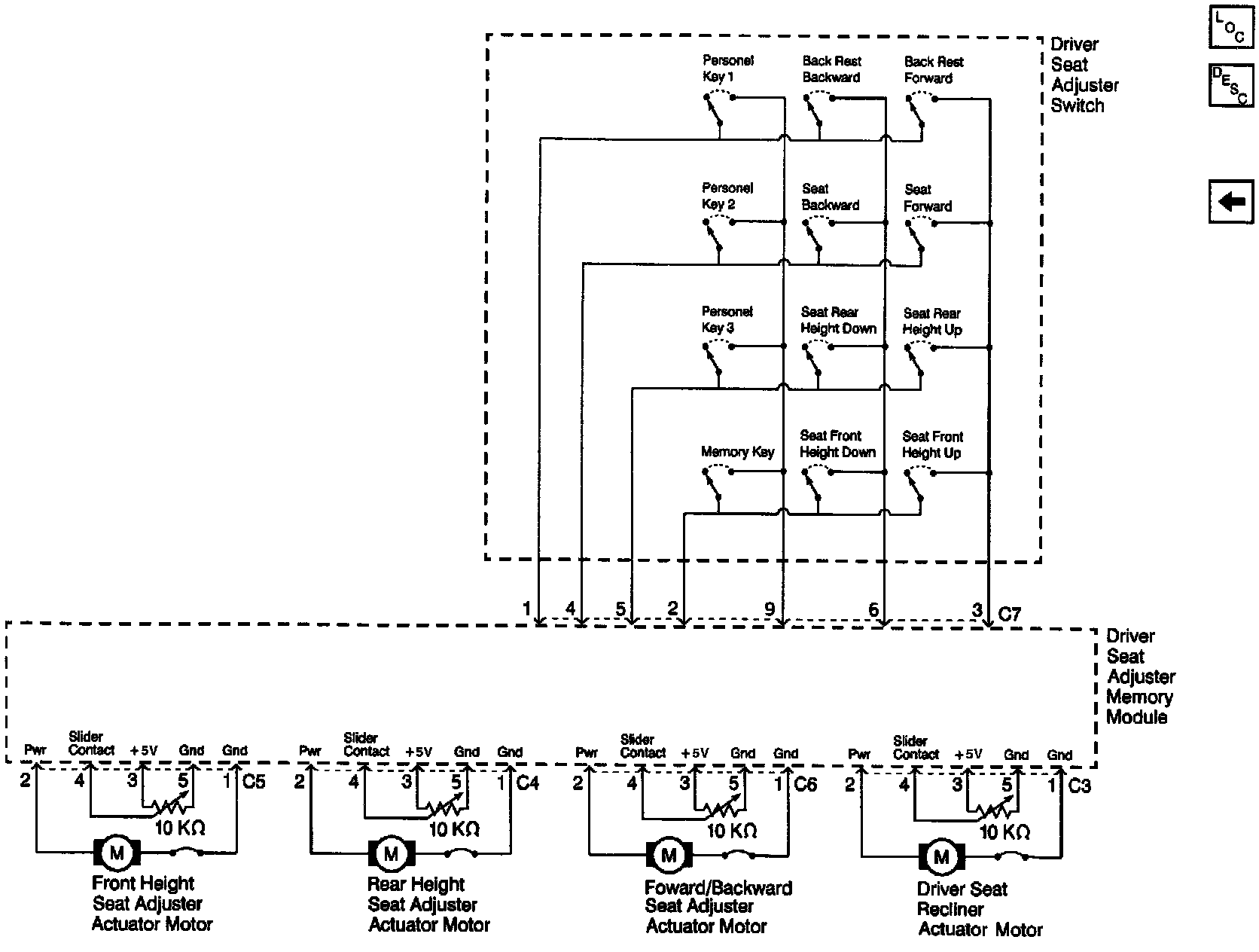

Memory Seats Schematics: Driver Seat Adjuster Switch And Actuator Motors With Memory:
