Wind Deflector Replacement

REMOVAL PROCEDURE

Wind Deflector Replacement: Removal Procedure:

1. Slide the sunscreen all the way rearward.
2. Open the glass panel.

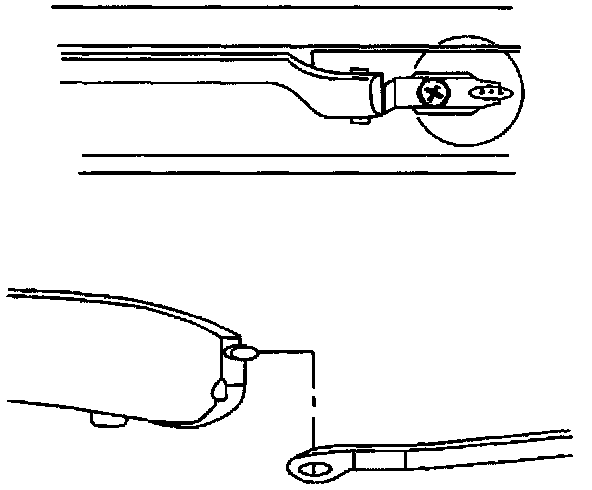

3. Remove the screws from the wind deflector lift arms.

Wind Deflector Replacement: Removal Procedure:

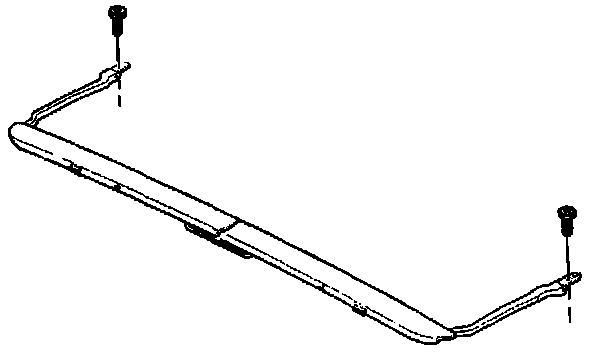

4. Remove the wind deflector by lifting the arms from the front locators pins.

Wind Deflector Replacement: Removal Procedure:

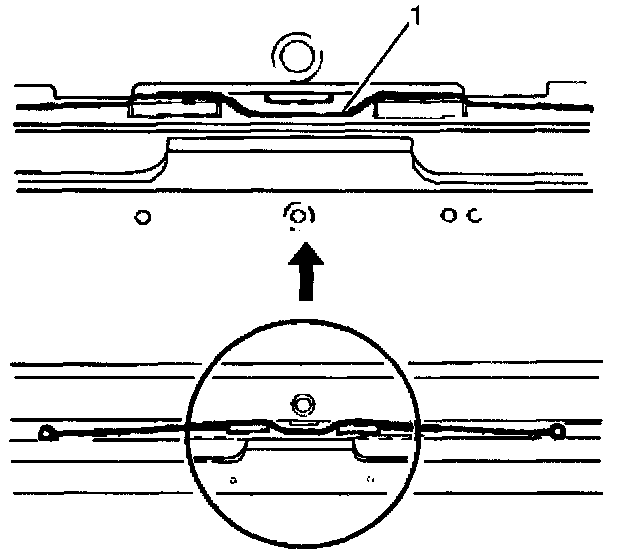

5. Remove the lift spring (1), which is located in the front of the wind deflector.

INSTALLATION PROCEDURE

Wind Deflector Replacement: Installation Procedure:

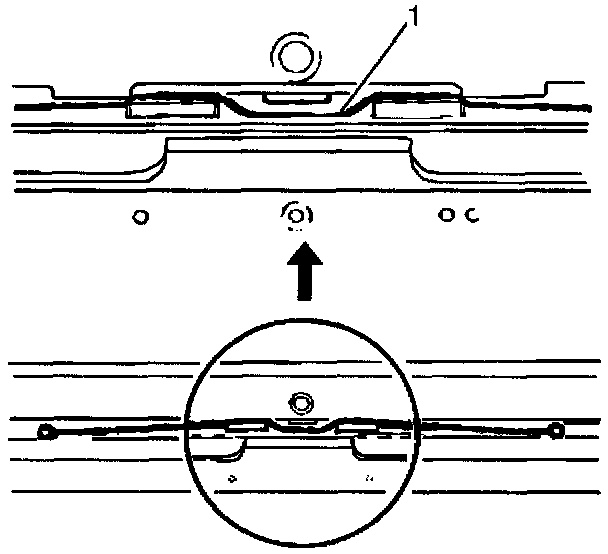

1. Install the lift spring (1). Place the lift spring under the wind deflector with the roll sided down.

Wind Deflector Replacement: Installation Procedure:

2. Install the wind deflector lifting arms to the front locators pins.

Wind Deflector Replacement: Installation Procedure:

3. Install the screws to the wind deflector lift arms.

Tighten
Tighten the wind deflector screws until fully seated and not stripped.

4. Close the glass panel.
5. Slide the sunscreen closed.
