Water Gutter Replacement

REMOVAL PROCEDURE

Water Gutter Replacement: Removal Procedure:

1. Remove the headliner.
2. Remove the sunroof actuator.

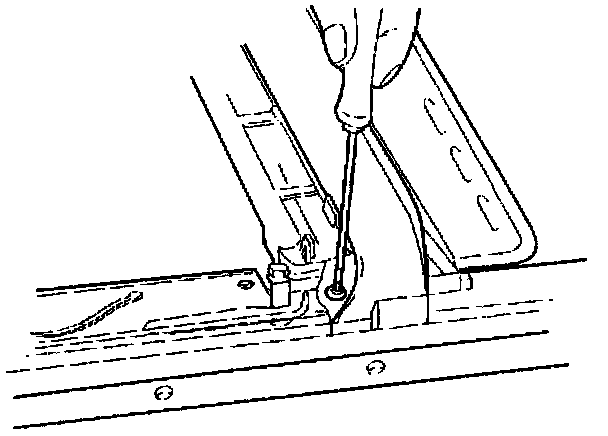

3. Remove the screws from the water gutter.
4. Remove the water gutter.

INSTALLATION PROCEDURE

Water Gutter Replacement: Installation Procedure:

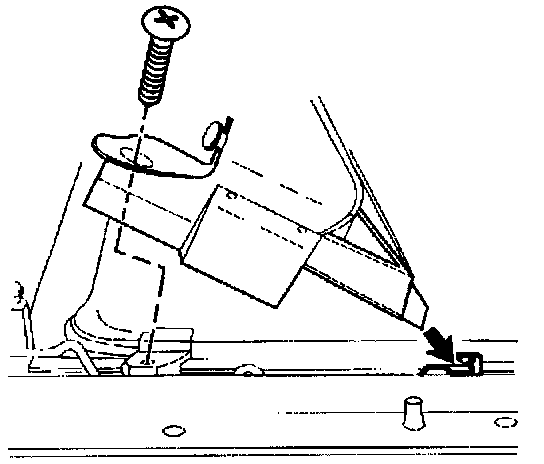

1. Install the water gutter.
2. Install the screws to the water gutter.

Tighten
Tighten the water deflector screws until fully seated and not stripped.

3. Install the sunroof actuator.
4. Install the headliner.
