Sunroof Guide Replacement

REMOVAL PROCEDURE

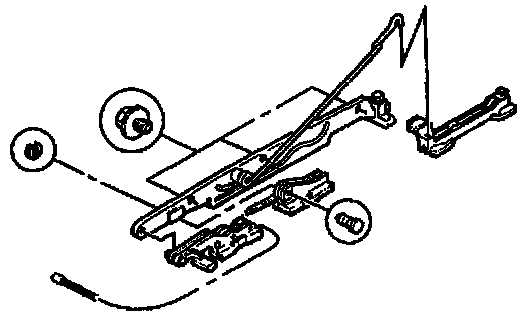

Sunroof Guide Replacement: Removal Procedure:

1. Remove the sunroof actuator.
2. Remove the water gutter.
3. Remove the screw from the sunroof actuator cable stop.

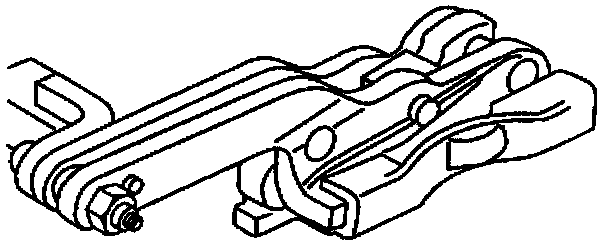

Sunroof Guide Replacement: Removal Procedure:

4. Remove the sunroof actuator cable stop from the sunroof actuator.
5. Remove the slide and/or the guide from the sunroof actuator.
6. Remove the sunroof guide.

INSTALLATION PROCEDURE

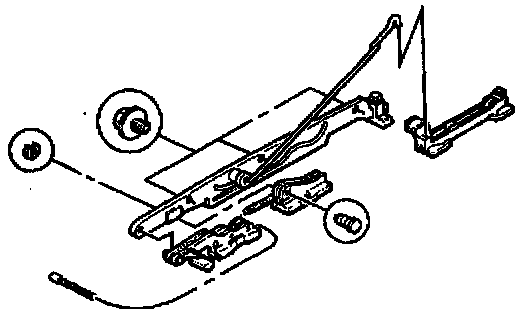

Sunroof Guide Replacement: Installation Procedure:

1. Install the sunroof guide.
2. Install the slide and/or guide to the sunroof actuator.
3. Connect the sunroof actuator cable stop to the sunroof actuator.

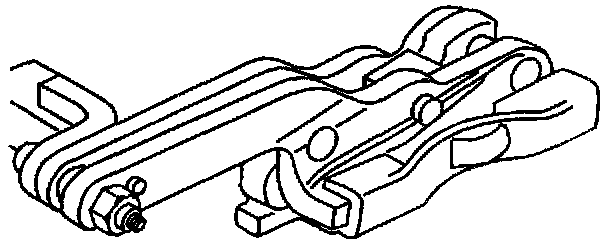

Sunroof Guide Replacement: Installation Procedure:

4. Install the screw to the sunroof actuator cable stop.
5. Install the water gutter.
6. Install the sunroof actuator.
