Sliding Block Guide Replacement

REMOVAL PROCEDURE

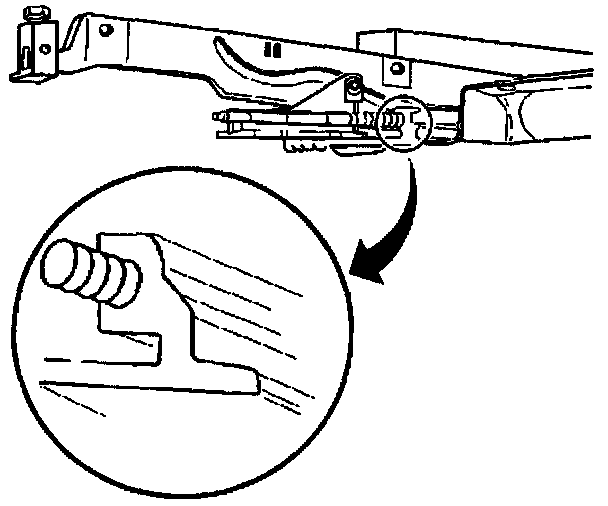

Sliding Block Guide Replacement: Removal Procedure:

IMPORTANT: Always replace the cables and the rear guide in pairs.

1. Remove the sunroof actuator.
2. Remove the water gulled.
3. Remove the screw from the sunroof actuator cable stop.
4. Remove the sunroof actuator cable stop from the sunroof actuator.
5. Remove the slide and/or guide from the sunroof actuator.

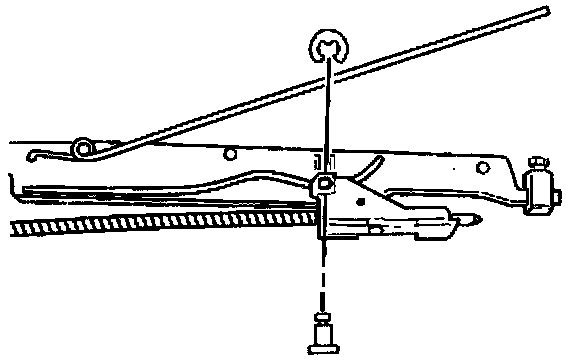

Sliding Block Guide Replacement: Removal Procedure:

6. Remove the pin and C-clip.
7. Disconnect the cable and the rear guide from the slide.

INSTALLING PROCEDURE

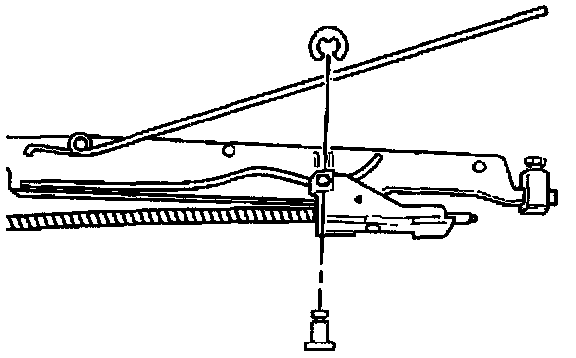

Sliding Block Guide Replacement: Installation Procedure:

1. Install the cable and the rear guide to the slide. Sparingly lubricate cables, use Silicon Grease, GM P/N 12345579 or equivalent.
2. Install the pin and C-clip.

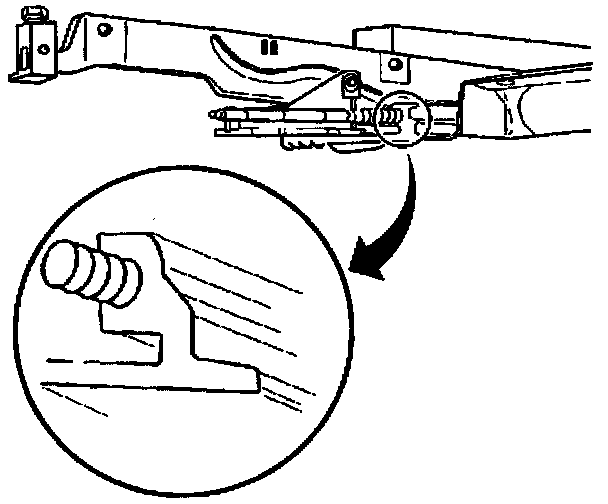

Sliding Block Guide Replacement: Installation Procedure:

3. Install the slide and/or guide to the sunroof actuator.
4. Install the sunroof actuator stop to the sunroof actuator.
5. Install the screw to the cable stop sunroof actuator.

Tighten
Tighten the sunroof actuator cable stop screw until fully seated and no stripped.

6. Install the water gutter.
7. Install the sunroof actuator.
8. Adjust both cables with the slide and/or the guide.
