Slider Adjustment

REMOVAL PROCEDURE

Slider Adjustment: Removal Procedure:

1. Slide the sunscreen all the way rearward.
2. Remove the glass panel.

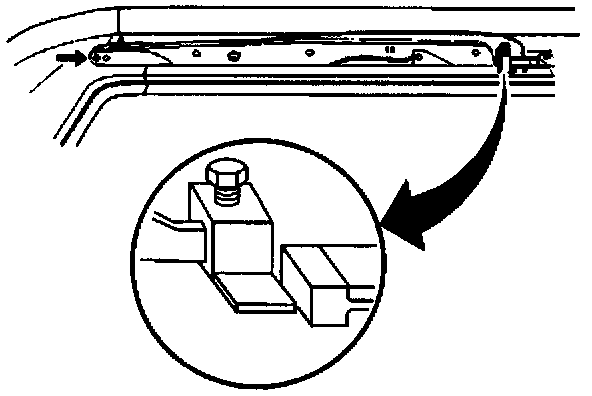

3. Remove the bolt from the slide Adjuster.
4. The right and left slide must be in full rearward position in order to ensure alignment.
5. Apply slight pressure to the slides to keep tightly in place.
6. Tighten the bolts on both sides in order to lock the slides in place.

INSTALLATION PROCEDURE

Slider Adjustment: Installation Procedure:

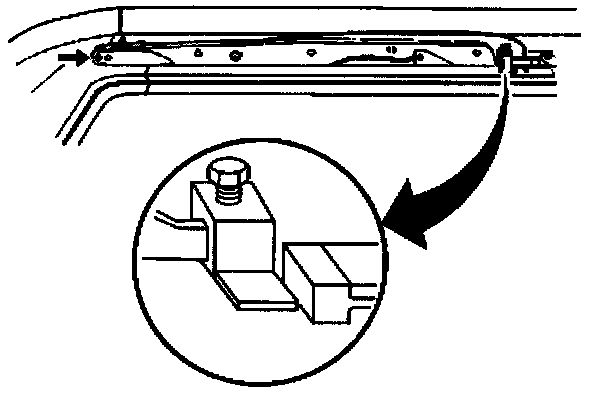

1. Install the bolt to the slide adjuster.

Tighten
Tighten the slide adjustment bolt to 5 N.m. (44 lb in).

2. Install the glass panel.
3. Close the glass panel.
4. Slide the sunscreen closed.
