Brush Cover Replacement

REMOVAL PROCEDURE

Brush Cover Replacement: Removal Procedure:

1. Slide the sunscreen all the way rearward.
2. Open the glass panel halfway.

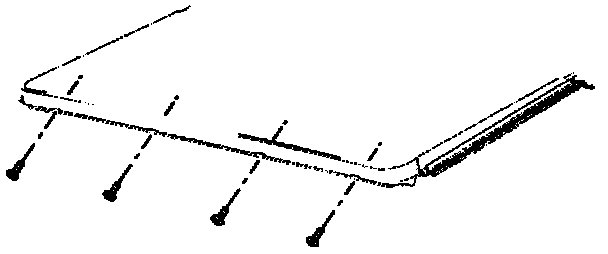

3. Remove the screws from the brush cover along the front edge.
4. Unclip the brush cover from both rear corners.
5. Open the glass panel all the way.
6. Remove the brush cover through the glass panel opening.

INSTALLATION PROCEDURE

Brush Cover Replacement: Installation Procedure:

1. Install the brush cover through the glass panel opening.
2. Close the glass panel half way.
3. Clip the brush cover to both rear corners.
4. Install the screws to the brush cover along the front edge.

Tighten
Tighten the brush cover screws until fully seated not stripped.

5. Close the glass panel.
6. Slide the sunscreen closed.
