Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Power Seat Control Module >> Diagrams >> C2

C2

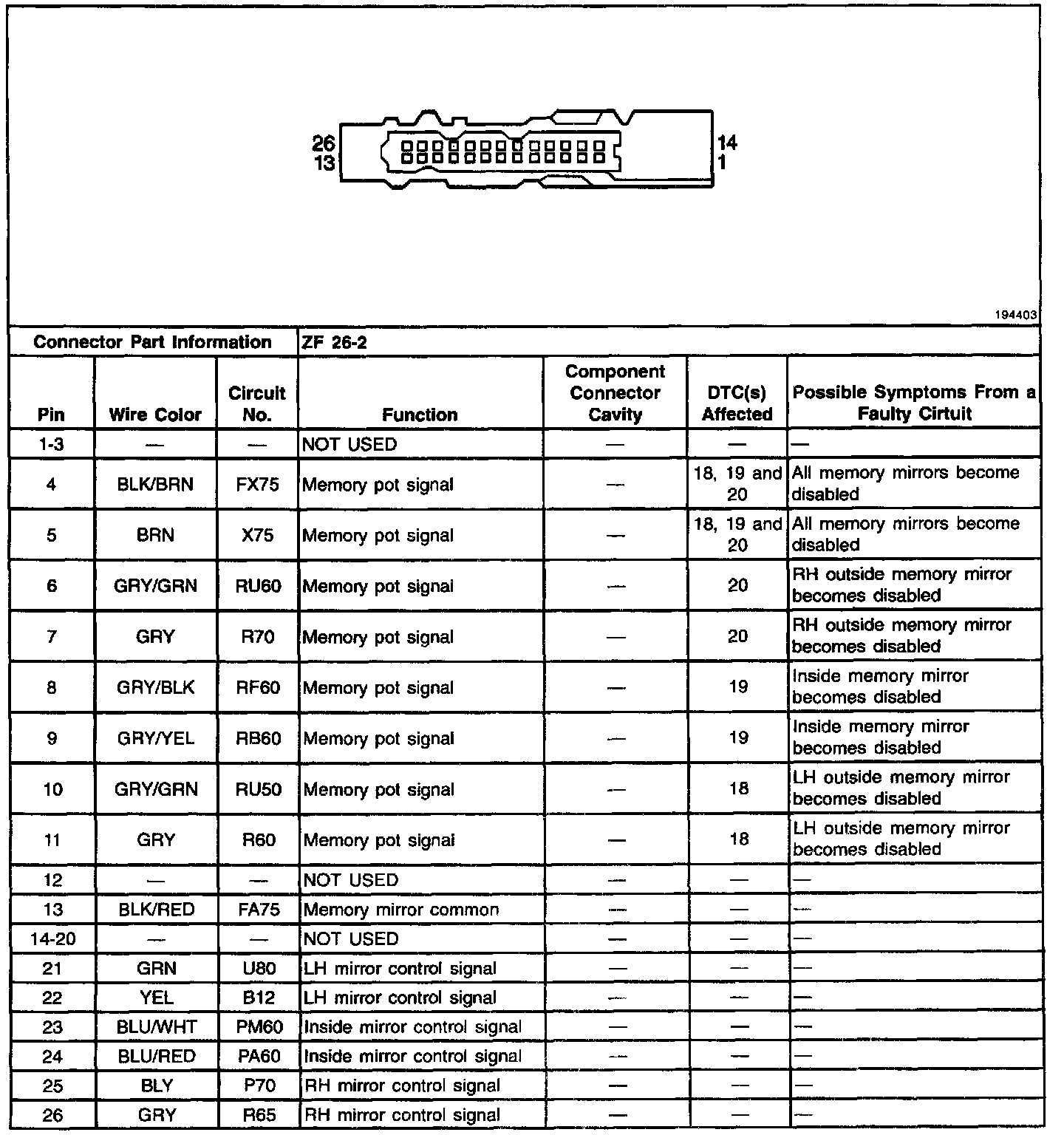

Driver Seat Adjuster Memory Module Connector: C2:
