Lock Rod Knob Replacement: Door (Rear)

REMOVAL PROCEDURE

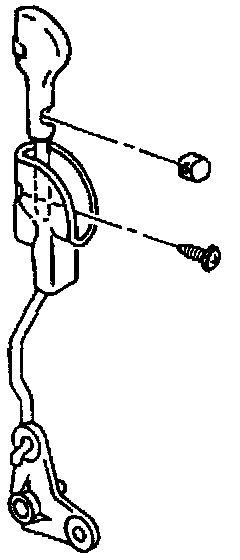

Lock Rod Knob Replacement - Door (Rear): Removal Procedure:

1. Pull up on the knob in order to expose the orange tab.
2. Pry out on the tab with a screwdriver in order to release the knob.
3. Remove the screw.
4. Remove the bezel from the trim panel.

INSTALLATION PROCEDURE

Lock Rod Knob Replacement - Door (Rear): Installation Procedure:

1. Install the bezel to the trim panel.
2. Install the screw.
3. Install the knob:

Tighten
Tighten door lock bezel screw until fully seated but not striped.

4. Insert the orange tab into the slot.
5. Push the knob into position.
