Lock Replacement (Rear Door)
REMOVAL PROCEDURELock Replacement (Rear Door): Removal Procedure:
1. Remove the door trim panel.
2. Remove the door water deflector.
3. Remove the inside door handle.
4. Remove all the rods that attach to the lock assembly.
5. Remove the door lock actuator electrical connector.

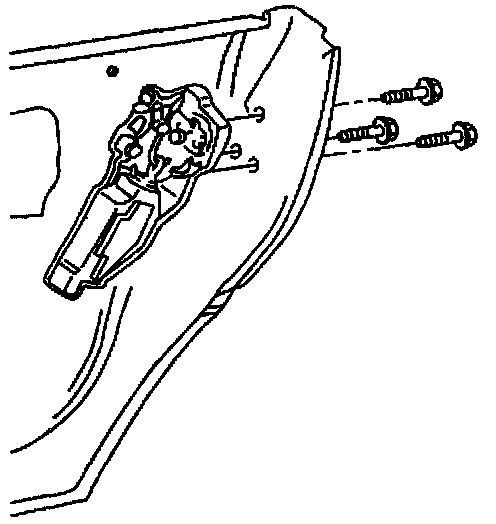

6. Remove the door lock screws.
7. Remove the door lock.
INSTALLATION PROCEDURE
Lock Replacement (Rear Door): Installation Procedure:
1. Install the door lock.
2. Install the door lock screws.
Tighten
Tighten door lock screws to 8 N.m (71 lb in).
3. Install the door lock actuator electrical connector.
4. Install all the rods that attach to the lock assembly.
5. Install the inside door handle.
6. Install the door water deflector.
7. Install the door trim panel.
