Lock Cylinder Replacement: Door
REMOVAL PROCEDURELock Cylinder Replacement - Door: Removal Procedure:
1. Disable SIR system if equipped with SIR side impact system.
2. Remove the front door trim panel.
3. Remove the front door water deflector.

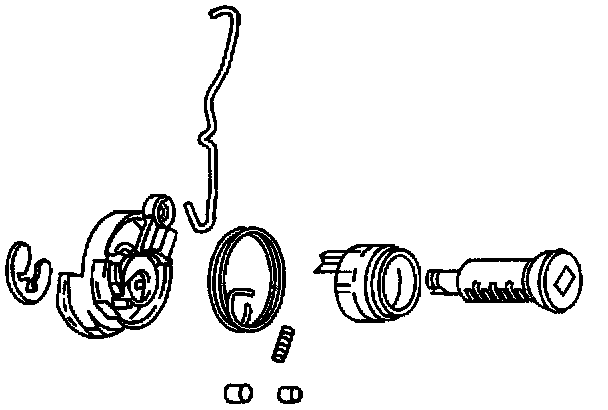

4. Remove the front door outside handle.
5. Remove the front door outside handle lock rod.
6. Remove the C-Clip.
7. Remove the cam lever.
8. Remove the spring from the lock barrel.
9. Remove the thrust spring.
10. Remove the clear plastic cap.
11. Remove the door lock cylinder roll pin.
12. Insert the key into the lock cylinder.
13. Turn the lock cylinder to the right to release the cylinder from the lock plate.
14. Remove two ball bearings, two roller cylinder thrust caps.
15. Remove the lock cylinder from the cylinder housing.
INSTALLATION PROCEDURE
Lock Cylinder Replacement - Door: Installation Procedure:
1. Install the lock cylinder to the cylinder housing.
2. Install two ball bearings, two roller cylinder thrust caps.
3. Turn the lock cylinder to the left to lock the cylinder to the lock plate.
4. Remove the key from the lock cylinder.
5. Install the door lock cylinder roll pin.
6. Install the clear plastic cap.
7. Install the thrust spring.
8. Install the cam lever.
9. Install the C-Clip.
10. Install the front door outside handle.
11. Install the front door water deflector.
12. Install front door trim panel.
13. Enable SIR system If equipped with SIR side impact system.
