Power Window Switch

REMOVAL PROCEDURE

Power Window Switch: Removal Procedure:

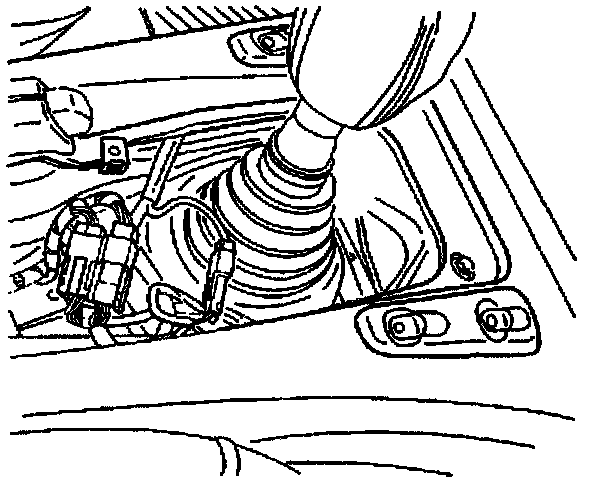

1. Remove the gear selector boot from console. The boot snaps into console and can be removed by gently pulling on front end of boot.
2. Remove the connector from power window switch.

Power Window Switch: Removal Procedure:

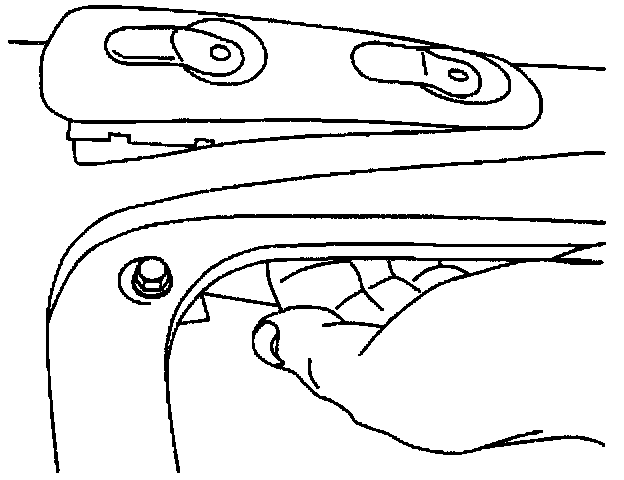

3. Dislodge the switch from console by reaching under console opening near gear selector.

IMPORTANT: Do not the switch from console as damage to console trim panel may occur.

INSTALLATION PROCEDURE

Power Window Switch: Installation Procedure:

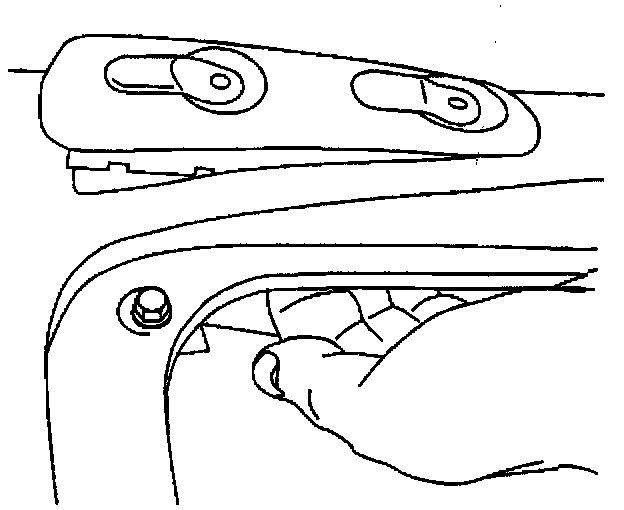

1. Install the switch into console by firmly seating.

Power Window Switch: Installation Procedure:

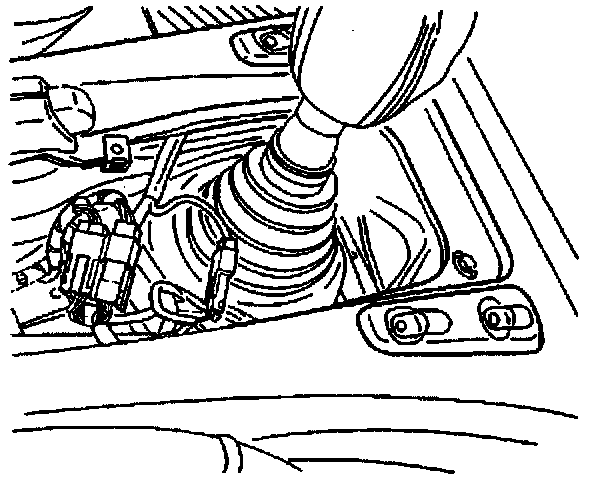

2. Install the connector to switch.
3. Install the gear selector boot to console by snapping into place.
