Lower Console

REMOVAL PROCEDURE

Upper Console: Removal Procedure:

1. Remove the front floor upper console.
2. Remove the front floor console rear vent housing.

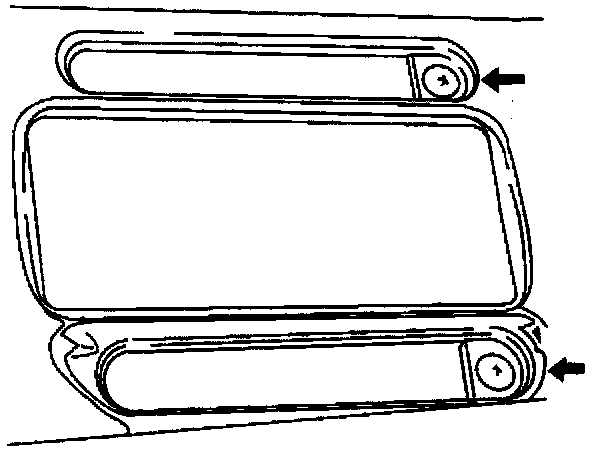

3. Remove the front floor lower console trim plate screws (1).
4. Remove the front floor lower console trim plate.

Lower Console: Removal Procedure:

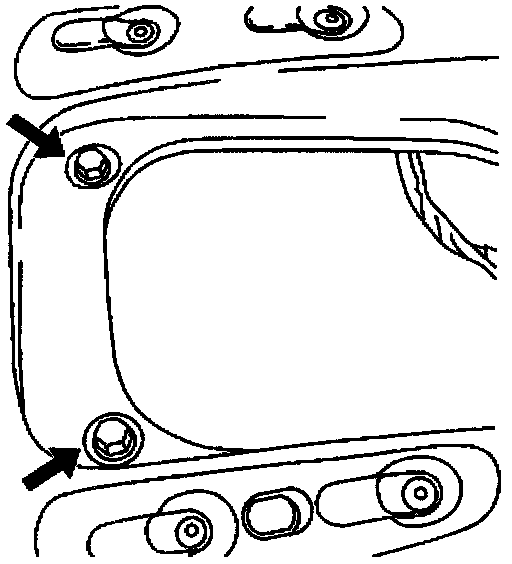

5. Remove the front floor lower console bolts (1) from lower console (2).
6. Remove the power window switches.
7. Remove the shift indicator.
8. Remove the automatic transmission 1st and 2nd gear lockout switch.
9. Remove the front floor lower console.

INSTALLATION PROCEDURE

Lower Console: Installation Procedure:

1. Install the front floor lower console into mounting position.
2. Install the automatic transmission 1st and 2nd gear lockout switch.
3. Install the shift indicator.
4. Install the power window switches.
5. Install the front floor lower console bolts.

Tighten
Tighten the front floor lower console bolts until fully seated but not stripped.

6. Install the front floor lower console trim panel.

Upper Console: Installation Procedure:

7. Install the front floor lower console trim panel screws.

Tighten
Tighten the front floor lower console trim panel screws until fully seated but not stripped.

8. Install the front floor console rear vent housing.
9. Install the front floor upper console.
