Molding Replacement - Rocker Panel Corner

REMOVAL PROCEDURE

Molding Replacement - Rocker Panel Corner: Removal Procedure:

1. Open the doors.
2. Raise and support the vehicle.
3. Remove the rear tire and wheel assembly.

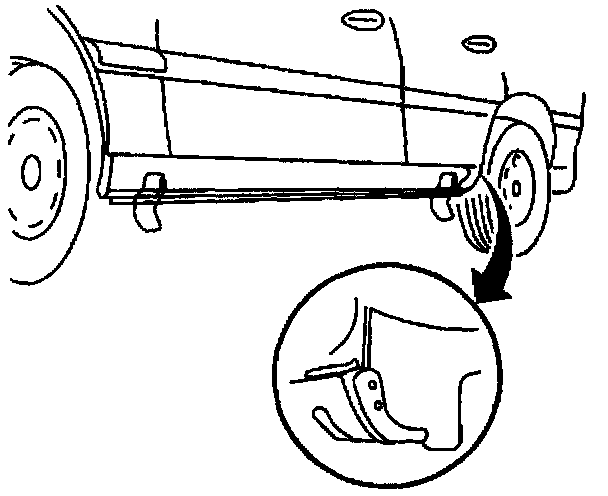

4. Drill out the rocker corner rivets to remove. The rocker molding does not need to be removed to replace the rocker corner molding.
5. Remove the rear corner molding.

INSTALLATION PROCEDURE

Molding Replacement - Rocker Panel Corner: Installation Procedure:

1. Push the rear corner molding into the rocker molding to lock in place.
2. Install the rocker corner molding rivets.
3. Install the rear tire and wheel assembly.
4. Lower the vehicle.
5. Close the doors.
