Trunk / Liftgate Latch: Service and Repair

REMOVAL PROCEDURE

Latch Replacement - Rear Compartment Lid: Removal Procedure:

1. Open the rear compartment lid.
2. Remove the rear compartment lid finish panel.
3. Remove the rear compartment manual release handle.

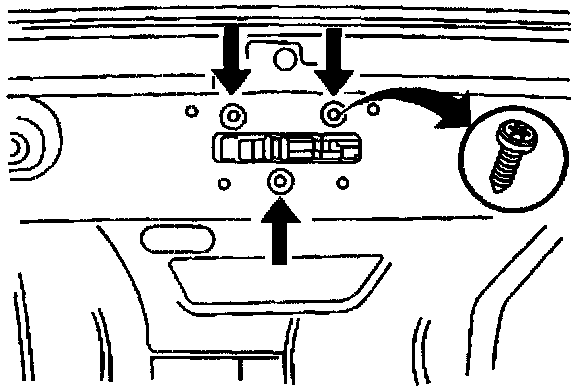

4. Remove the screws from the rear compartment lid latch.
5. Remove the rear compartment lid release actuator.
6. Remove the rear compartment lid latch from the compartment lid.

INSTALLATION PROCEDURE

Latch Replacement - Rear Compartment Lid: Installation Procedure:

1. Install the rear compartment lid latch to the compartment lid.
2. Install the rear compartment lid release actuator.

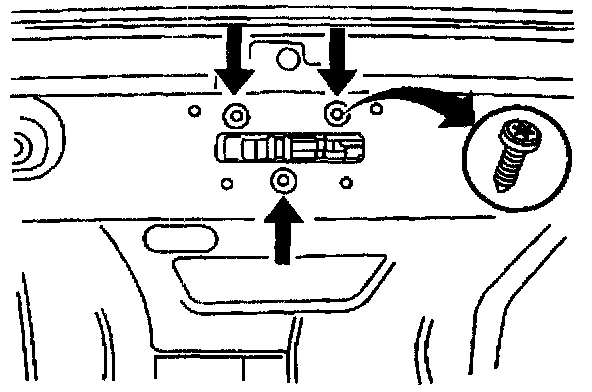

3. Install the screws to the rear compartment lid latch.
4. Tighten
Tighten rear compartment lid latch screws to 10 N.m (89 in).
5. Install the rear compartment manual release handle.
6. Install the rear compartment lid finish panel.
7. Close the rear compartment lid.
