Compartment Lid Trim Replacement: Rear

REMOVAL PROCEDURE

Compartment Lid Trim Replacement - Rear: Removal Procedure:

Tools Required
J 38778 Door Trim Pad and Garnish Clip Remover

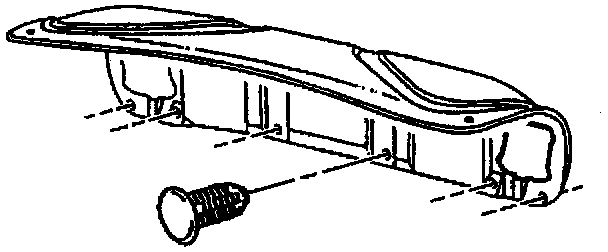

1. Remove twenty retainers using J 38778 from the compartment lid finish panel.
2. Remove the compartment lid finish panel.

INSTALLATION PROCEDURE

Compartment Lid Trim Replacement - Rear: Installation Procedure:

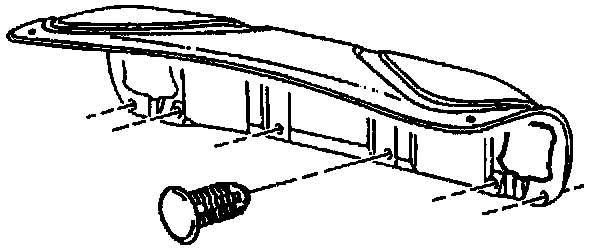

1. Install the rear compartment lid finish.
2. Install the retainers to the rear compartment lid finish panel.
