Compartment Assist Strap Replacement: Rear

REMOVAL PROCEDURE

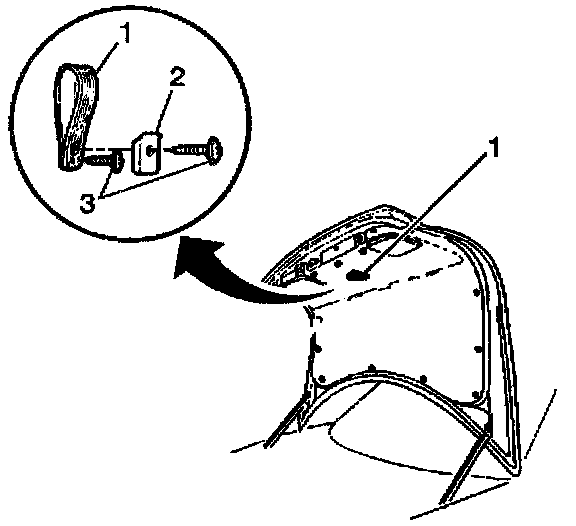

Compartment Assist Strap Replacement - Rear: Removal Procedure:

1. Remove the rear compartment pull strap screws (3).
2. Remove the rear compartment pull strap cover (2).
3. Remove the rear compartment pull strap (1).

INSTALLATION PROCEDURE

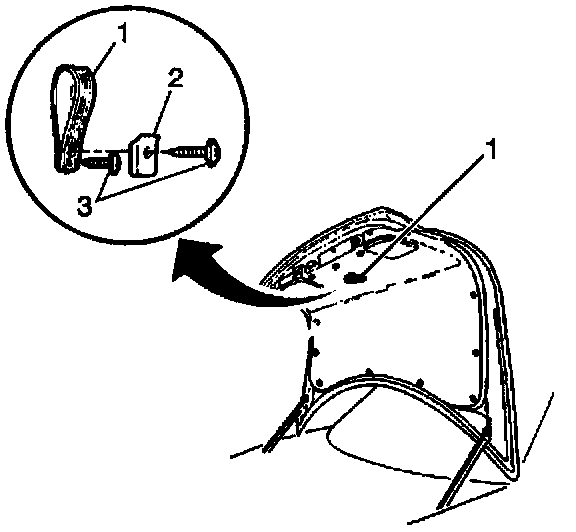

Compartment Assist Strap Replacement - Rear: Installation Procedure:

1. Install the rear compartment pull strap (1).
2. Install the rear compartment pull strap cover (2).
3. Install the rear compartment pull strap screws (1).

Tighten
Tighten the rear compartment pull strap screws until fully seated. Do NOT strip the rear compartment pull strap screws.
