Spare Wheel and Hold-Down Replacement

REMOVAL PROCEDURE

Spare Wheel and Hold-Down Replacement: Removal Procedure:

1. Remove the two upper retainers at spare tire cover.
2. Remove the flap under the rear compartment floor carpet.

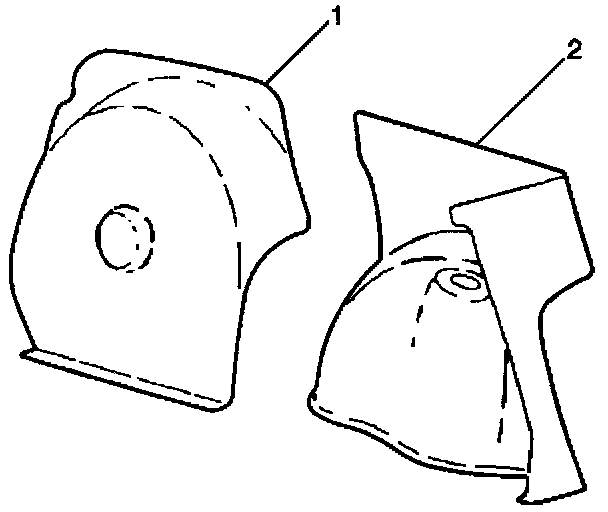

3. Remove spare tire cover panel (1).

Spare Wheel and Hold-Down Replacement: Removal Procedure:

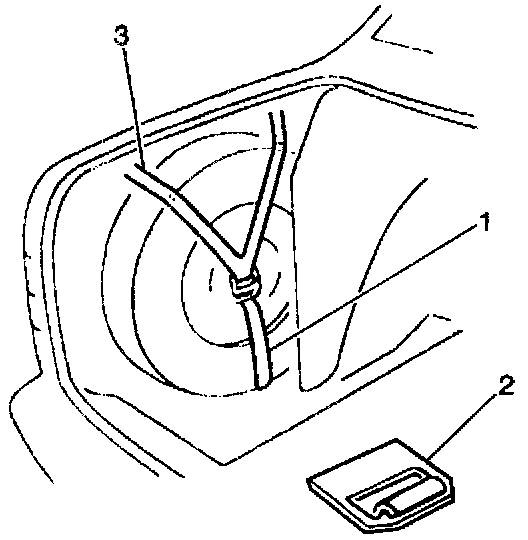

4. Unhook the three way belt (1) and (3).
5. Remove the spare tire.

IMPORTANT: Spare tire must be reinstalled in belt when not in use.

INSTALLATION PROCEDURE

Spare Wheel and Hold-Down Replacement: Installation Procedure:

1. Install the spare tire.
2. Ensure the valve stem on the spare tire rim faces outward.

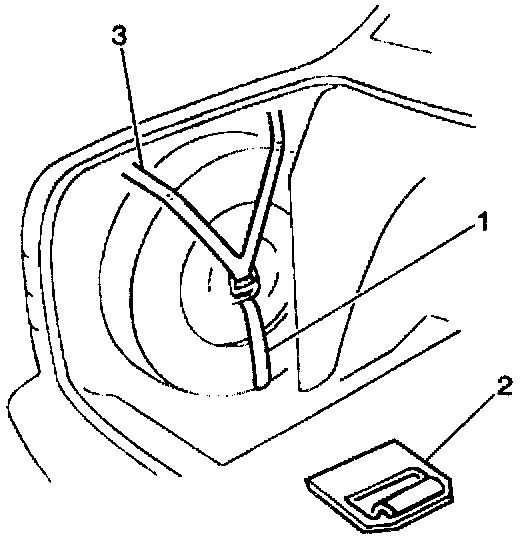

3. Rehook the three-way belt to secure the spare tire (1) and (3).

Spare Wheel and Hold-Down Replacement: Installation Procedure:

4. Install the spare tire cover panel (1).
5. Install the two upper retainer at spare tire cover.
6. Install the flap under the rear compartment floor carpet.
