Lock Actuator Replacement - Rear Compartment Lid

REMOVAL PROCEDURE

Lock Actuator Replacement - Rear Compartment Lid: Removal Procedure:

1. Open the rear compartment lid.
2. Remove the rear compartment lid finish panel.
3. Remove the rear compartment lid manual release handle.

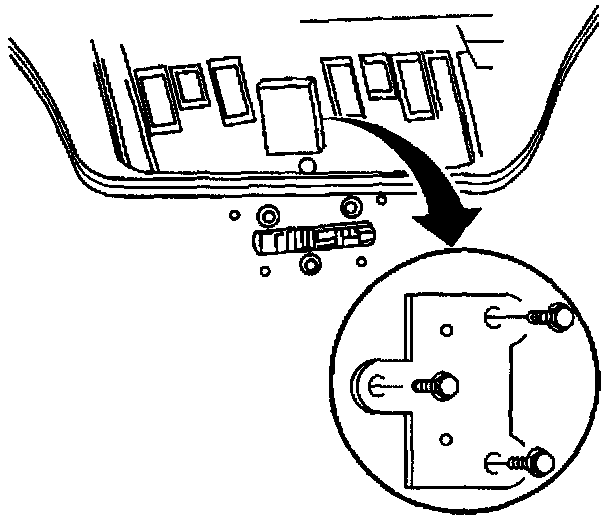

4. Remove the rear compartment lid release actuator mounting plate bolts from the lid.

Lock Actuator Replacement - Rear Compartment Lid: Removal Procedure:

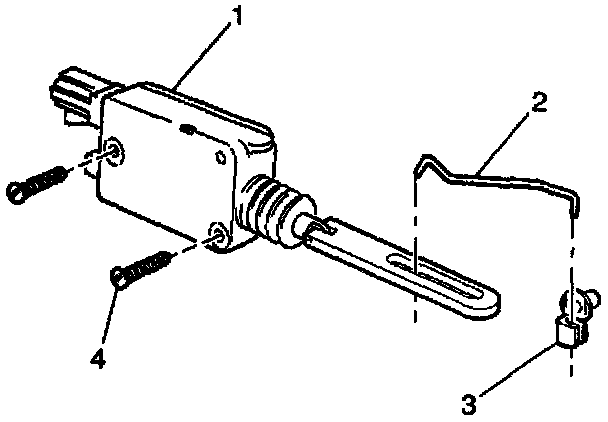

5. Remove the electrical connector from the rear compartment lid release actuator (1).
6. Remove the rear compartment lid release actuator rod (2) from the latch.
7. Remove the rear compartment lid release actuator screws (4) from the mounting plate.
8. Remove the rear compartment lid release actuator (1).

INSTALLATION PROCEDURE

Lock Actuator Replacement - Rear Compartment Lid: Installation Procedure:

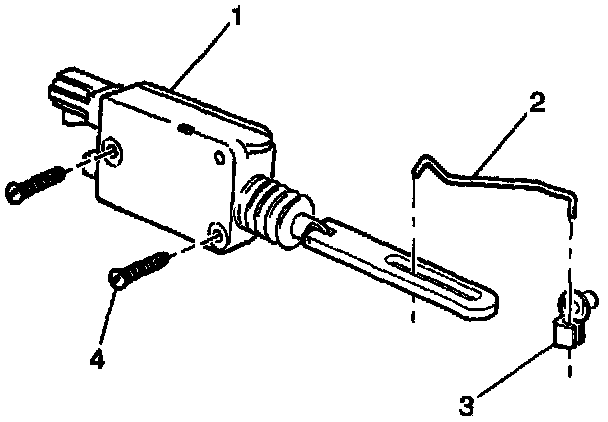

1. Install the rear compartment lid release actuator (1).
2. Install the rear compartment lid release actuator screws (4) to the mounting plate.

Tighten
Tighten the rear compartment lid release actuator screws to 3 N.m (27 lb in).

3. Install the rear compartment lid actuator rod (2) to the latch.
4. Install the electrical connector to the rear compartment lid release actuator (1).

Lock Actuator Replacement - Rear Compartment Lid: Installation Procedure:

5. Install the rear compartment lid release actuator mounting plate bolts to the lid.

Tighten
Tighten the rear compartment lid actuator mounting plate bolts to 2.5 N.m (22 lb in).

6. Install the rear compartment lid manual release handle.
7. Install the rear compartment lid finish panel.
8. Close the rear compartment lid.
