Window Belt Inner

REMOVAL PROCEDURE

CAUTION: Disconnect the power window switch when working inside the divers door: When operated, the Express Down feature allows the door window to drop very quickly, which could cause personal injury.

Sealing Strip - Front Door Window Belt Inner: Removal Procedure:

1. Disable SIR system, if equipped with inflatable restraint side impact system.
2. Lower the window to the bottom of the door.
3. Remove front door trim panel.

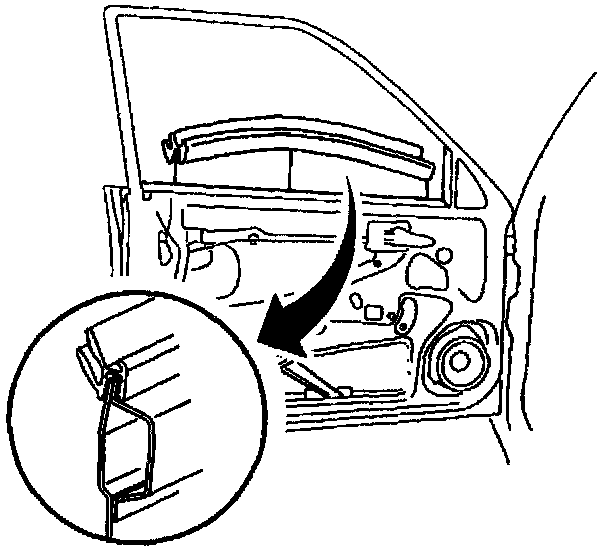

4. Lift up on the front edge of the inner belt sealing strip in order to release from the flange.

INSTALLATION PROCEDURE

Sealing Strip - Front Door Window Belt Inner: Installation Procedure:

1. Install the inner belt sealing strip.
2. Install front door trim panel.
3. Raise the window all the way up.
4. Enable SIR system, if equipped with inflatable restraint side impact system.
