Upper
REMOVAL PROCEDURESealing Strip Replacement (Front Door Upper): Removal Procedure:
1. Disable SIR system If equipped with SIR side impact system.
2. Roll the window down.
3. Remove the front door trim panel.
4. Remove the front door water deflector.
5. Remove the Inflatable restraint side impact sensor mounting plate if equipped.
6. Remove the front door inner belt sealing strip.
7. Remove the outside rearview mirror.
8. Remove front door outer belt sealing strip.
9. Remove the window weather-strip.
10. Remove the front door window lower channel.
11. Remove the front door window regulator/motor.
12. Remove the front door window.

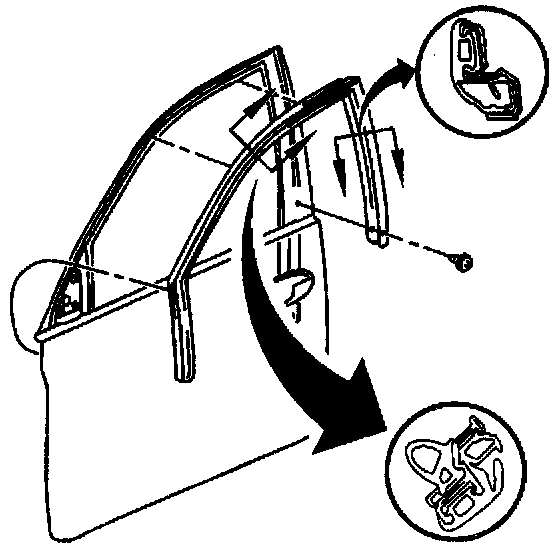

13. Remove the upper sealing strip from the door.
INSTALLATION PROCEDURE
Sealing Strip Replacement (Front Door Upper): Installation Procedure:

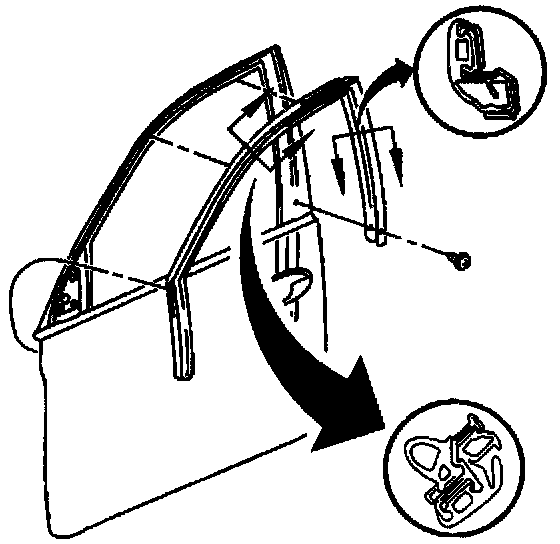

1. Install the upper sealing strip to the door.
2. Install the front door window.
3. Install the front door window regulator/motor.
4. Install the front door window lower channel.
5. Install the window weather-strip.
6. Install front door outer belt sealing strip.
7. Install the outside rearview mirror.
8. Install the front door inner belt sealing strip.
9. Install the Inflatable restraint side impact sensor mounting plate if equipped.
10. Install the front door water deflector.
11. Install front door trim panel.
12. Roll window up.
13. Enable SIR system if equipped with SIR side impact system.
