Rubber Conduit

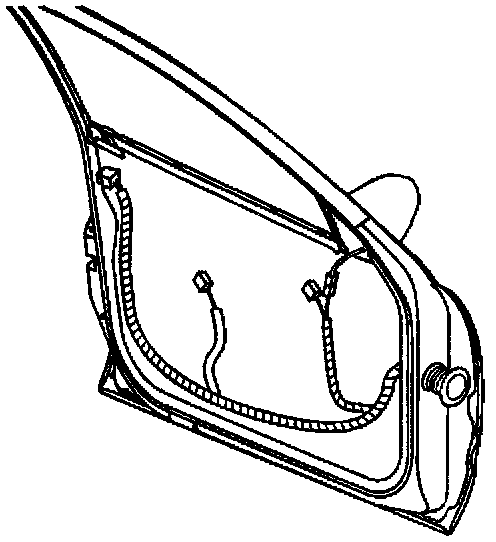

REMOVAL PROCEDURE

Rubber Conduit Replacement (Front Door): Removal Procedure:

1. Disable SIR system if equipped with SIR side impact system.
2. Disconnect the rubber conduit from door and pillar.
3. Loosen the plastic-type nut located on conduit closest to the door.
4. Grasp the conduit close to the end being removed.
5. Using a turning/pulling motion, remove the conduit.
6. Disconnect the wiring harness connectors.

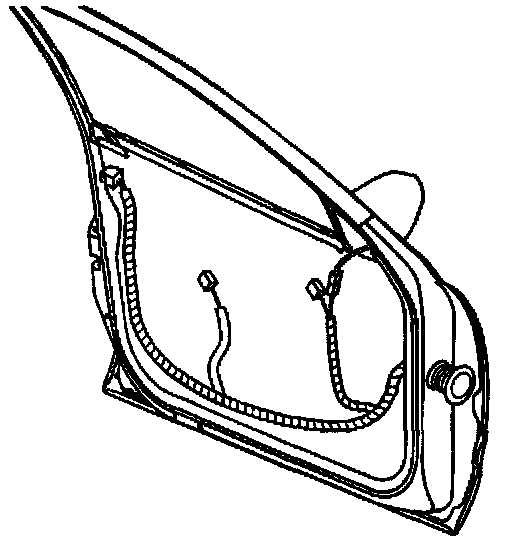

INSTALLATION PROCEDURE

Rubber Conduit Replacement (Front Door): Installation Procedure:

1. Connect the wiring harness connectors.
2. Install the conduit using a turning-pushing motion into the door and the pillar.
3. Using a turning/push motion, install the conduit to the door and pillar.
4. Tighten the plastic-type nut located on conduit closest to the door.
5. Enable SIR system if equipped with SIR side impact system.
