Window Guide

REMOVAL PROCEDURE

Window Guide Replacement - Door: Removal Procedure:

1. Disable SIR system, if equipped with inflatable restraint side impact system.
2. Front door window in the up position.
3. Remove front door trim panel.
4. Remove front door water deflector.
5. Remove inflatable restraint side impact sensor mounting plate, if equipped.

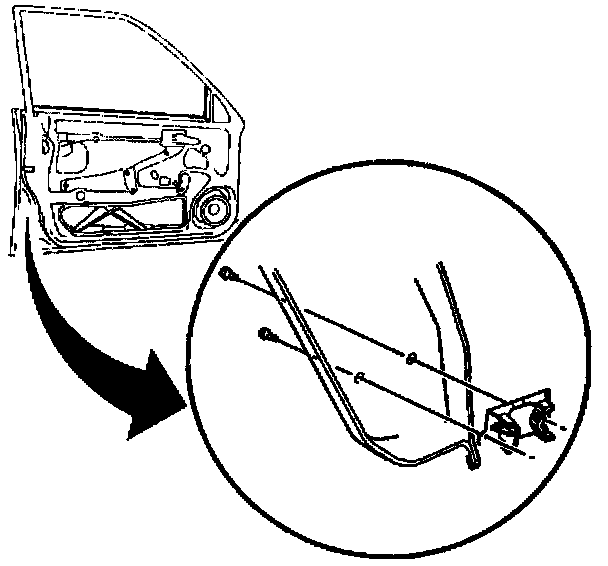

6. Remove front door window guide screws.
7. Remove front door window guide.

INSTALLATION PROCEDURE

Window Guide Replacement - Door: Installation Procedure:

1. Install front door window guide.
2. Install front door window guide screws.

Tighten
Tighten Window Guide Screws until fully seated and but not stripped.

3. Install inflatable restraint side impact sensor mounting plate, if equipped.
4. Install front door water deflector.
5. Install front door trim panel.
6. Enable SIR system, if equipped with inflatable restraint side impact system.
