Guide Rail
REMOVAL PROCEDUREWindow Guide Rail Replacement (Front Door): Removal Procedure:
1. Disable SIR system, if equipped with inflatable restraint side impact system.
2. Roll the window all the way up.
3. Front door trim panel.
4. Remove the water deflector.
5. Inflatable restraint side impact sensor mounting plate, if equipped.

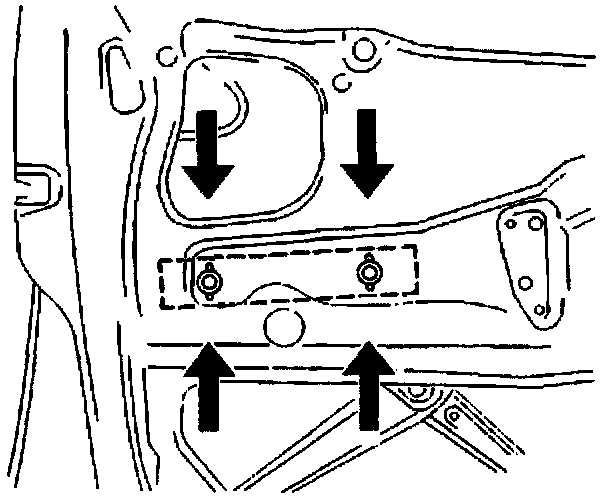

6. Remove the guide rail bolts.
7. Remove the guide rail.
INSTALLATION PROCEDURE
Window Guide Rail Replacement (Front Door): Installation Procedure:
1. Install the guide rail.

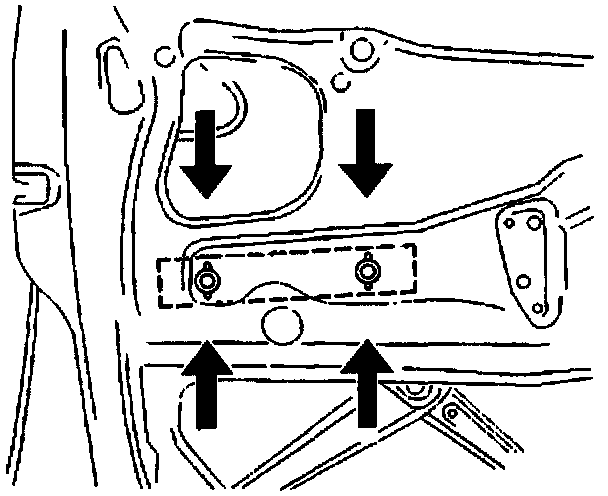

2. Install the guide rail bolts.
Tighten
Tighten Guide Rail Bolts to 7 N.m (62 lb in).
3. Adjust the guide rail:
3.1. Roll the window part way down.
3.2. Loosen both the bolts on the guide rail adjuster.
3.3. Roll the window back up and tighten both the guide rail adjuster bolts.
Tighten
Tighten the Guide Rail Adjuster Bolts to 7 N.m (62 lb in).
4. Check the to ensure that the window seats into the door frame.
5. Inflatable restraint side impact sensor mounting plate, if equipped.
6. Install the water deflector.
7. Front door trim panel.
8. Enable SIR system, if equipped with inflatable restraint side impact system.
