Assist Handle and Molding
REMOVAL PROCEDUREAssist Handle and Molding Replacement - Front Door:Removal Procedure:
1. Remove the tweeter speaker.

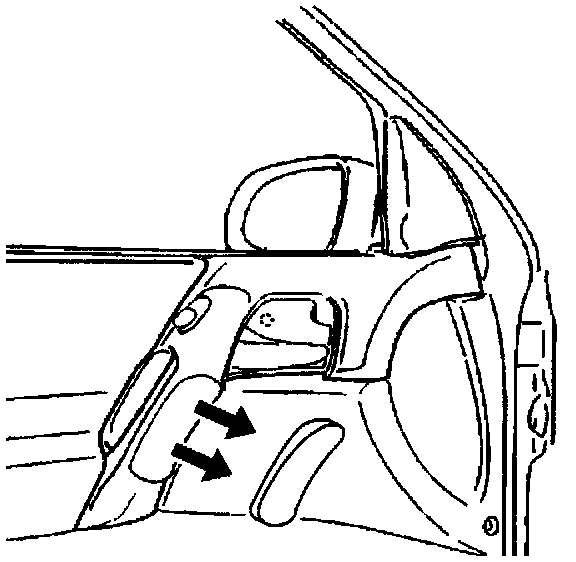

2. Pry of the assist handle front molding using a plastic tool.
Assist Handle and Molding Replacement - Front Door:Removal Procedure:
3. Remove door inside handle bezel by unsnapping.
Assist Handle and Molding Replacement - Front Door:Removal Procedure:

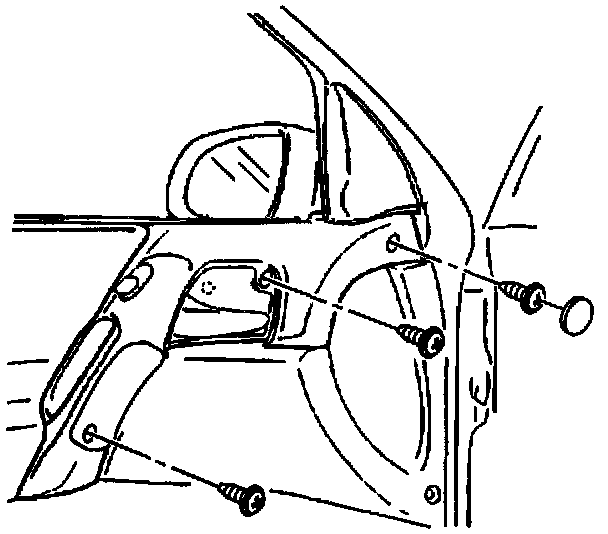

4. Remove the assist handle screws.
5. Front door power door lock switch.
6. Disconnect outside power mirror switch electrical connector.

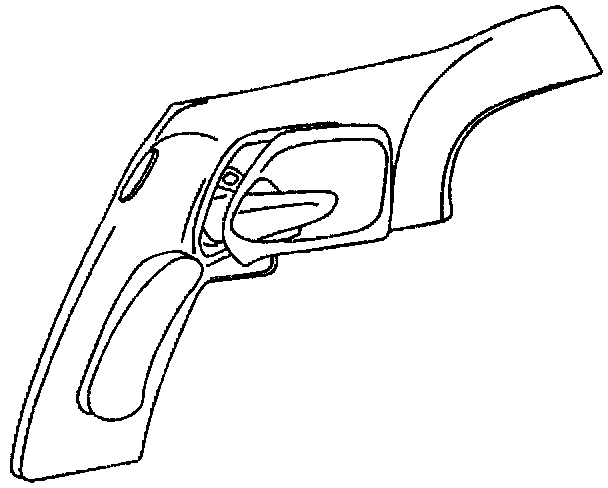

7. Remove the assist handle.
INSTALLATION PROCEDURE
Assist Handle and Molding Replacement - Front Door: Installation Procedure:

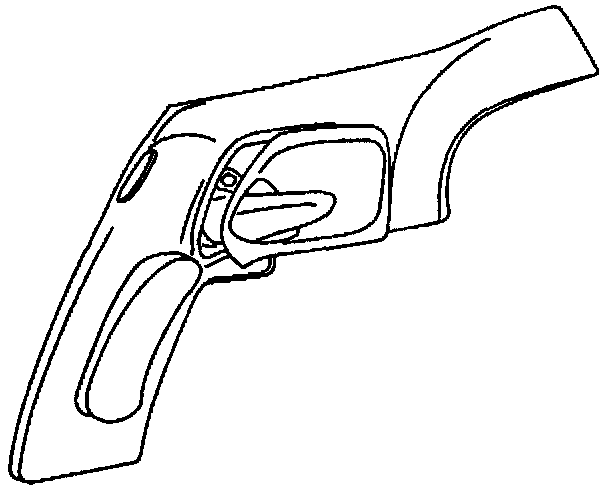

1. Install the assist handle.
2. Front door power door lock switch.
3. Connect outside power mirror switch connector.

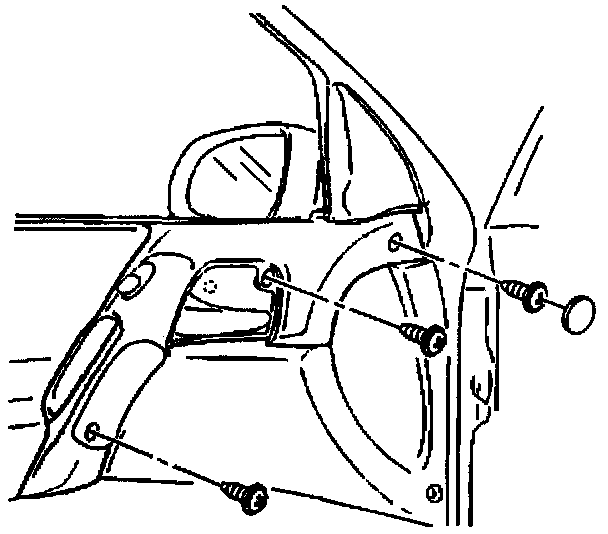

4. Install the assist handle screws.
Assist Handle and Molding Replacement - Front Door: Installation Procedure:
5. Snap on the cover.
6. Install the tweeter speaker.
