Window Belt Outer

REMOVAL PROCEDURE

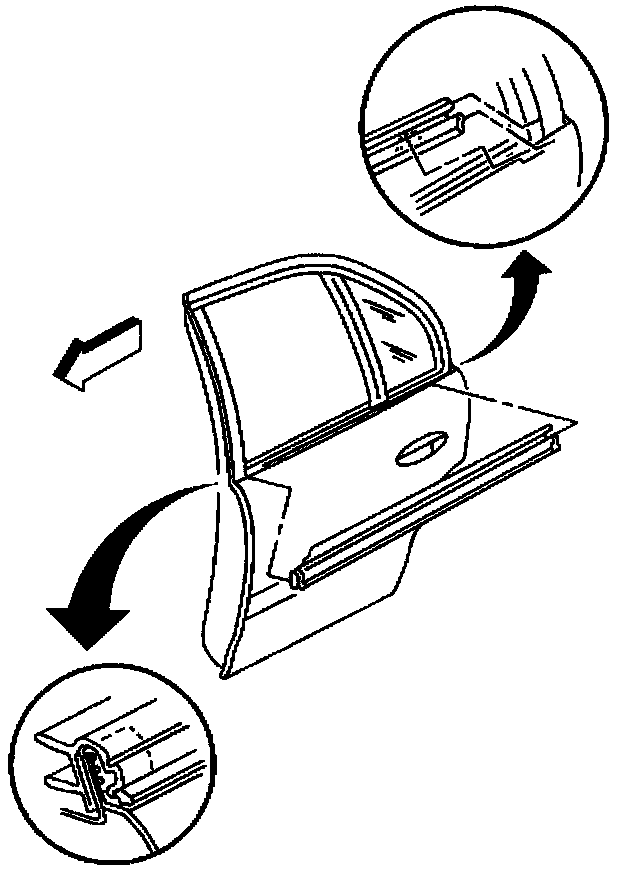

Sealing Strip Replace - Rear Door Window Belt Outer: Removal Procedure:

1. Lower the window to the bottom of the door
2. Grasp the outer belt sealing strip by the rear edge.
3. Pull the strip from the flange.

INSTALLATION PROCEDURE

Sealing Strip Replace - Rear Door Window Belt Outer: Installation Procedure:

1. Hold the new sealing strip by the rear edge.
2. Press the strip firmly onto the flange.
3. Seat the strip using a rubber mallet.
4. Raise the window.
