Window Belt Inner

REMOVAL PROCEDURE

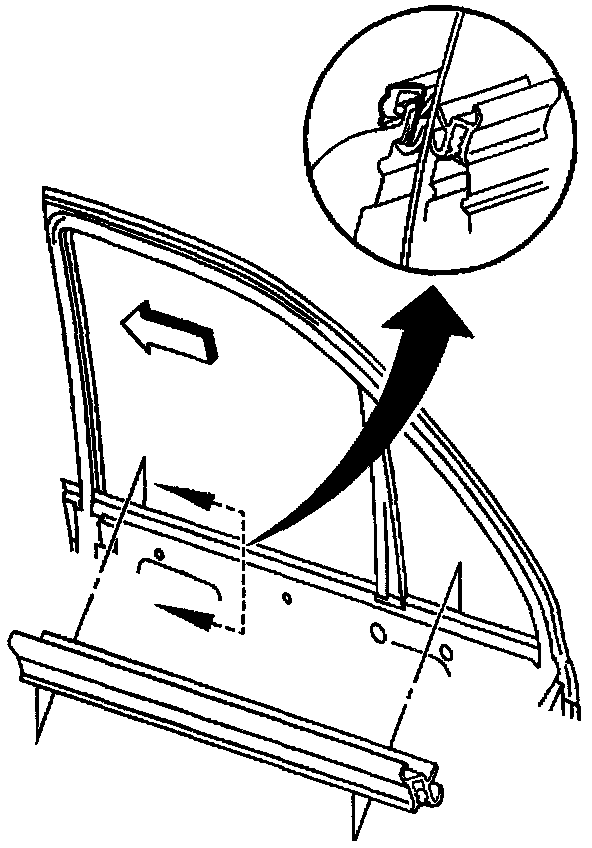

Sealing Strip Replace - Rear Door Window Belt Inner: Removal Procedure:

1. Lower the window to the bottom of the door.
2. Remove the trim panel.
3. Lift up on the rear edge of the inner belt sealing strip in order to remove.

INSTALLATION PROCEDURE

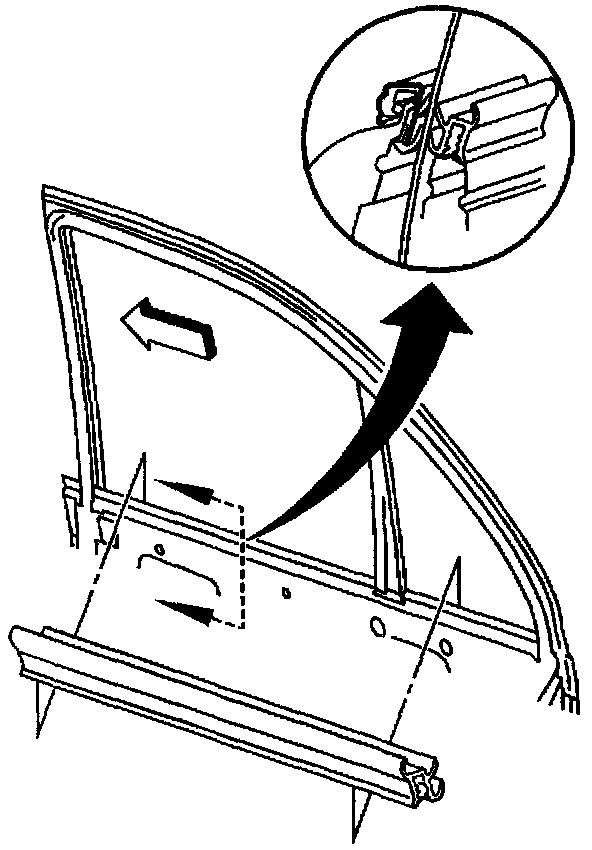

Sealing Strip Replace - Rear Door Window Belt Inner: Installation Procedure:

1. Install the sealing strip:
^ Start at the rear edge.
^ Press firmly onto the flange.
^ Seat the strip using a rubber mallet.
2. Install the trim panel.
3. Raise the window.
