Opening Weatherstrip

REMOVAL PROCEDURE

Weatherstrip Replacement (Rear Door Opening): Removal Procedure:

1. Loosen the quarter trim panels.
2. Loosen the center pillar trim panel.
3. Loosen the floor carpet retainer.
4. Remove the door opening weather-strip:

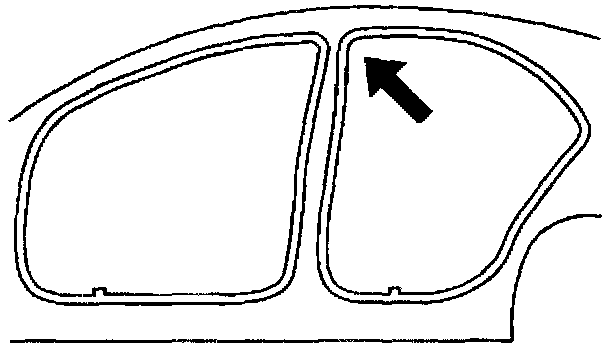

^ Start at the upper inner corner.
^ Pull the strip away from the flange.

INSTALLATION PROCEDURE

Weatherstrip Replacement (Rear Door Opening): Installation Procedure:

1. Install the weather-strip:
^ Start at the upper inner corner.
^ Align the weather-strip to the opening before pushing onto the flange.
2. Loosen the floor carpet retainer.
3. Loosen the center pillar trim panel.
4. Loosen the quarter trim panels.
