Rubber Conduit

REMOVAL PROCEDURE

Rubber Conduit Replacement (Rear Door): Removal Procedure:

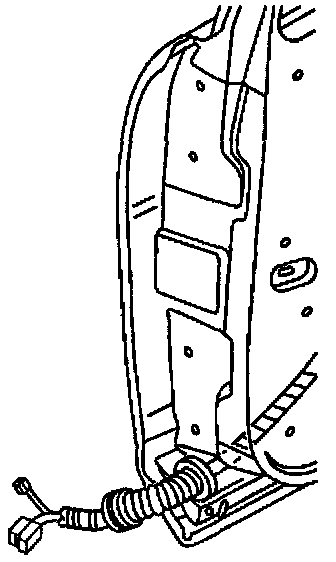

1. Remove the rubber conduit from the center pillar:
^ Hold at the center pillar base or at the lower door.
^ Stay close to the ends while using a turning-pulling motion in order to loosen the conduit.
^ Remove the conduit.
2. Disconnect the conduit connectors.
3. Remove the conduit from the wiring harness.

INSTALLATION PROCEDURE

Rubber Conduit Replacement (Rear Door): Installation Procedure:

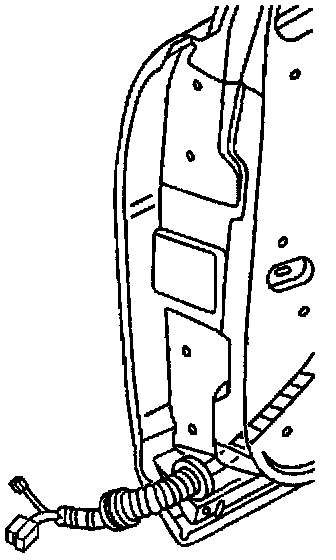

1. Install the conduit on the harnesses.
2. Connect the connectors.
3. Install the conduit to the center pillar.
