Window Stop Bumper

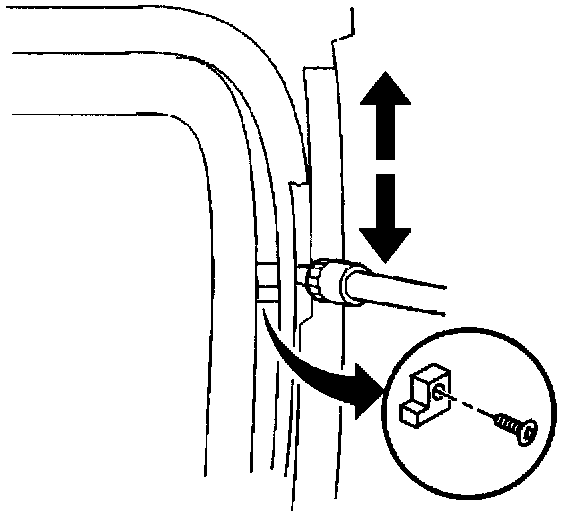

REMOVAL PROCEDURE

Window Stop Bumper Replacement (Rear Door): Removal Procedure:

1. Pull the window run channel weather-strip highway down.
2. Remove the window up stop screw.
3. Remove the window up stop.

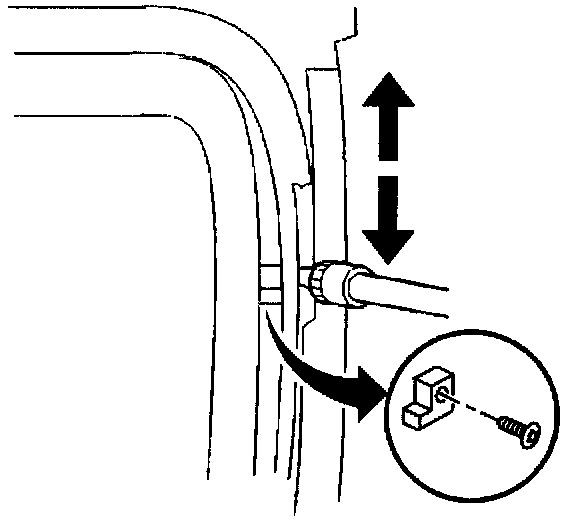

INSTALLATION PROCEDURE

Window Stop Bumper Replacement (Rear Door): Installation Procedure:

1. Install the up stop.
2. Install the up stop screw.
3. Push the weather-strip into place.
