Window

REMOVAL PROCEDURE
CAUTION:
^ Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.
^ Disconnect the power window switch when working inside the divers door. When operated, the Express Down feature allows the door window to drop very quickly, which could cause personal injury.

Window Replacement (Rear Door): Removal Procedure:

1. Roll the window halt way up and tape into place.
2. Remove the door trim panel.
3. Remove the water deflector.
4. Remove the inner belt sealing strip.
5. Remove the outer belt sealing strip.
6. Remove the door window weather-strip.
7. Remove the door vent window and division channel.
8. Remove door window regulator and motor.
9. Remove the tape from door window.

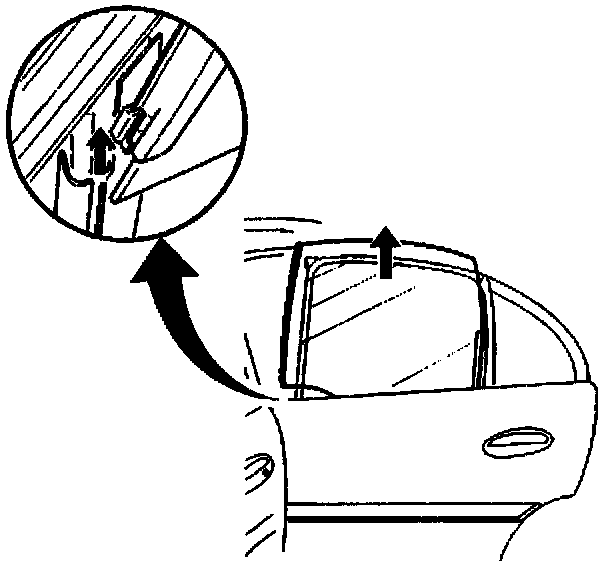

10. Remove the door window from the door.

INSTALLATION PROCEDURE

Window Replacement (Rear Door): Installation Procedure:

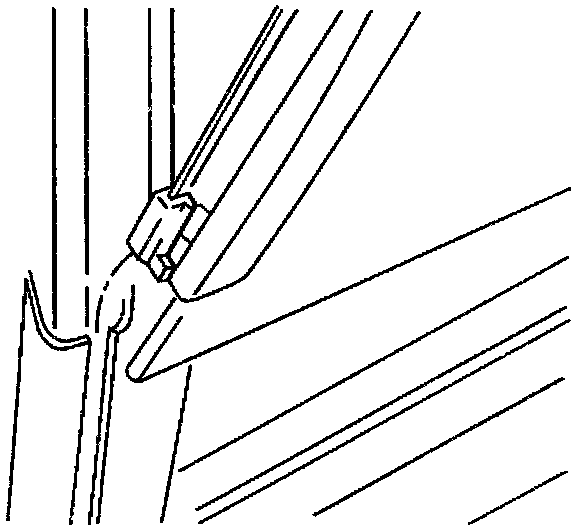

1. Install the door window to the door.
2. Tape the door window into place.
3. Install the door vent window division channel.
4. Install the door window weather-strip.
5. Install the outer belt sealing strip.
6. Install the inner belt sealing strip.
7. Install the water deflector.
8. Install the door trim panel.
9. Remove the tape from the window.
