REMOVAL PROCEDURE

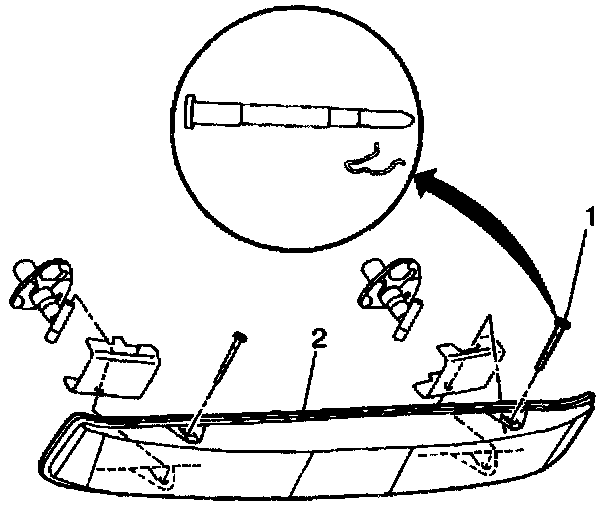

Fascia Support Replacement (Rear Bumper Outer): Removal Procedure:

1. Raise and support the vehicle.
2. Remove the rear fascia.

IMPORTANT:
^ The rear bumper fascia support hooks over the impact bar in one piece.
^ Remove the rear bumper impact bar to prevent damage to the rear bumper fascia support.

3. Remove the rear bumper impact bar.
4. Remove the rear bumper fascia support.

INSTALLATION PROCEDURE

Fascia Support Replacement (Rear Bumper Outer): Installation Procedure:

1. Hook the rear bumper fascia support over the impact bar to install the rear bumper fascia support.
2. Install the rear bumper impact bar.
3. Install the rear fascia.
4. Lower the vehicle.
