Retainer

REMOVAL PROCEDURE

Bumper Facia Retainer Replacement (Rear): Removal Procedure:

1. Raise and support the vehicle.
2. Remove the rear fascia.

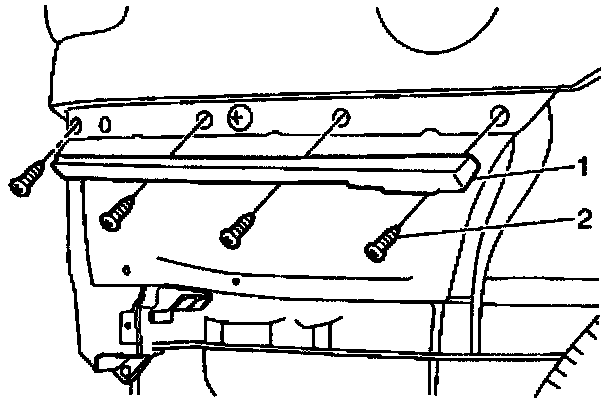

3. Remove the screws (2) from the rear fascia retainer (1).
4. Remove the retainer (1) from the rear fascia.

INSTALLATION PROCEDURE

Bumper Facia Retainer Replacement (Rear): Installation Procedure:

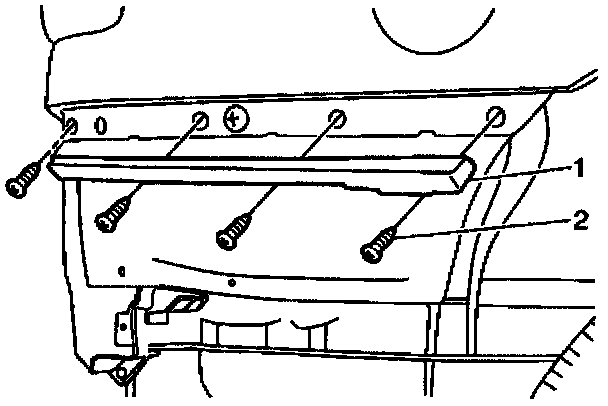

1. Install the retainer (1) to the rear fascia.
2. Install the screws (2) to the rear fascia retainer.

Tighten
Tighten the rear fascia retainer screws to 10 N.m (89 lb in).

3. Install the rear fascia.
4. Lower the vehicle.
