Retainer

REMOVAL PROCEDURE

Fascia Retainer Replacement (Front Bumper): Removal Procedure:

1. Raise and support the vehicle.
2. Remove the front fascia.

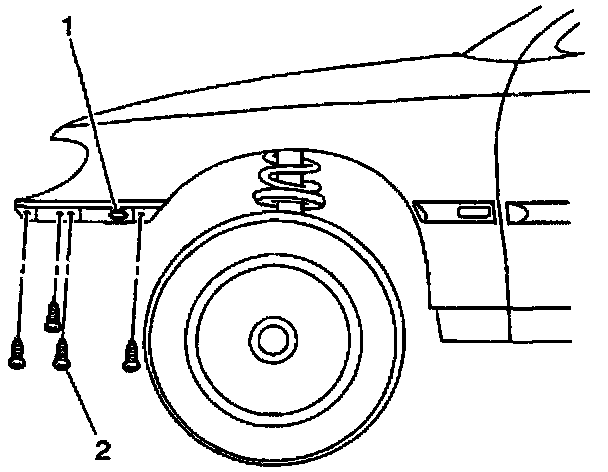

3. Remove the screws from the front fascia retainer (2).
4. Remove the front fascia retainer (1).

INSTALLATION PROCEDURE

Fascia Retainer Replacement (Front Bumper): Installation Procedure:

1. Install the front fascia retainer (1).
2. Install the front fascia retainer screws (2).

Tighten
Tighten the front fascia retainer screws to 10 N.m (89 lb in).

3. Install the front fascia.
4. Lower the vehicle.
